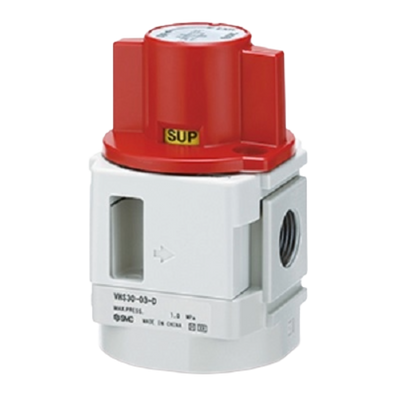

SMC VHS20F02 (VHS20-F02) - Residual Pressure Relief 3 Port Valve, ACG20 Air Combination Attachment, G1/4 Bore
SMC VHS20F02 Residual Pressure Relief 3 Port Valve — air combination attachment version sized to the ACG20 body, G thread, 1/4 bore. residual pressure relief 3 port valve, air combination attachment, ACG20 body size, G thread, 1/4 bore size.
MPN: VHS20-F02 · SKU: VHS20F02
VHS20-F02 Applications
The SMC VHS20F02 is used as the residual pressure relief element of an SMC air combination (ACG20) air preparation station. It is suited to exhausting trapped downstream air before filter bowl servicing, isolating a machine air supply during maintenance, and improving the visibility of pressure gauges mounted across a modular F.R.L. assembly. Fitting the relief valve as part of the air combination keeps the whole preparation set compact on the machine frame rather than requiring a separately piped shut-off unit.
VHS20-F02 Specifications
| Brand | SMC | Manufacturer Part No. | VHS20-F02 |
| Product Type | Residual Pressure Relief 3 Port Valve | Series | VHS |
| SMC Series Description | VHS Series Air Combination Attachments Residual Pressure Relief 3 Port Valve | Body Size | 20 - ACG20 |
| Thread Type | F - G | Bore Size | 02 - 1/4 |
| Semi-standard Specifications | None | Lifecycle | Manufacture discontinued since 12/2014; replacement series VHS20-30-40-50 |
