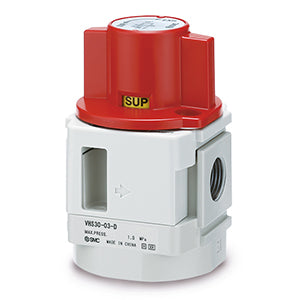

SMC VHS20F01D (VHS20-F01-D) - Shut-Off Valve, G1/8 lockable

SMC VHS20F01D Shut-Off Valve — Lockable residual-pressure-release (3-port) safety valve, G1/8. SMC VHS Series residual pressure release 3-port hand (shut-off) valve, size 20, G1/8 (F01) port, D option. Ambient and fluid temperature -5 to 60 C (no freezing), proof pressure 1.5 MPa, maximum operating pressure 1.0 MPa. Lockable (padlockable) in the exhaust position for energy isolation.

MPN: VHS20-F01-D · SKU: VHS20F01D

VHS20-F01-D Applications

SMC VHS20-F01-D is a manual 3-port shut-off valve that safely releases residual air pressure downstream when closed, protecting technicians during maintenance on pneumatic systems. In the exhaust position it can be padlocked, so it serves as part of a lock-out / energy-isolation procedure. With a G1/8 port it suits compact machines and sub-circuits, and the handle orientation clearly shows whether air is supplied or exhausted. It handles up to 1.0 MPa across -5 to 60 C, combining a small footprint with large exhaust capacity.

VHS20-F01-D Specifications
