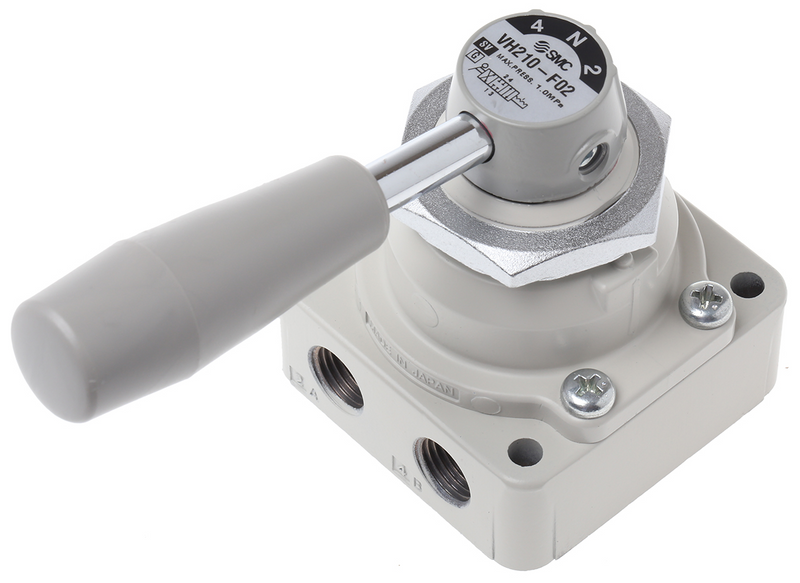

SMC VH210F02 Hand Valve — panel mounting with 3 position closed centre actuation and G1/4 ports. 3 position closed center, side piping, panel mounting, G thread, 1/4 port size, 1/4 standard body.
MPN: VH210-F02 · SKU: VH210F02
VH210-F02 Applications
The SMC VH210F02 is used on pneumatic control panels and machine consoles where an operator needs to shut off or redirect air manually. It is suited to air supply isolation, circuit set-up during commissioning, and simple two-way selection duties on packaging and assembly equipment. The panel mounting style lets the handle sit flush on an enclosure face, and the direction of air flow can be verified at a glance from the orientation of the handle, which speeds up fault finding.
VH210-F02 Specifications
| Brand | SMC | Manufacturer Part No. | VH210-F02 |
| Product Type | Hand Valve | Series | VH |
| SMC Series Description | VH Series Hand Valve | Body Size | 2 - 1/4 Standard |
| Piping/Mounting | 1 - Piping: Side; Mounting Method: Panel Mounting | Type Of Actuation | 0 - 3 Position Closed Center |
| Thread Type | F - G | Port Size | 02 - 1/4 |
| Suffix | None |
