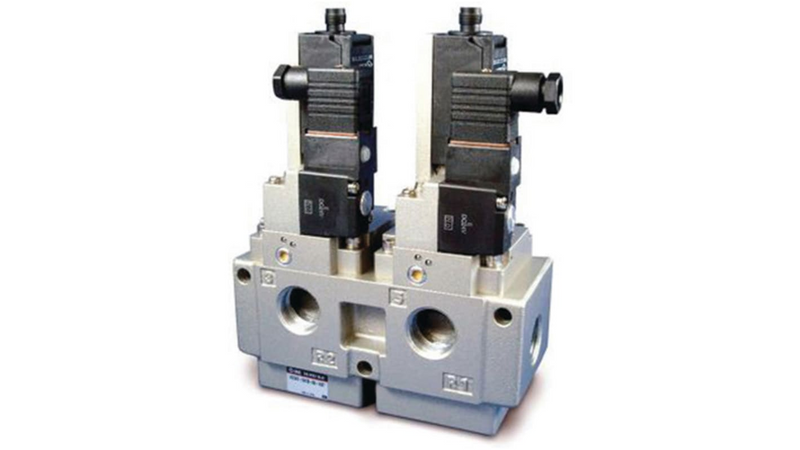

SMC VG3425DZ10FMX87 (VG342-5DZ-10F-MX87) - Solenoid Valve, 24 VDC G1 port

SMC VG3425DZ10FMX87 Solenoid Valve — Pilot poppet 3-port, 24 VDC DIN, G1 port, MX87 special. SMC VG342 Series 3-port pilot poppet solenoid valve, usable as selector or divider (external pilot), actuation changeable N.C./N.O./external pilot. Rated voltage 24 VDC, DIN terminal entry, G1 (1 in) port. Operating pressure 0.2 to 0.9 MPa, response time 30 ms or less at 0.5 MPa, standard power consumption 4.8 W DC. MX87 special specification.

MPN: VG342-5DZ-10F-MX87 · SKU: VG3425DZ10FMX87

VG342-5DZ-10F-MX87 Applications

SMC VG342-5DZ-10F-MX87 is a large pilot-operated poppet 3-port solenoid valve with a G1 port and 24 VDC DIN-terminal coil, built for high flow at pressures from 0.2 to 0.9 MPa. Its actuation can be configured normally closed, normally open or external-pilot, letting it act as a selector or divider valve, and it can operate under vacuum or low pressure with no lubrication. Fast 30 ms response and low 4.8 W consumption suit process air, dust collection and large-bore cylinder control; the -MX87 code denotes a factory special specification.

VG342-5DZ-10F-MX87 Specifications
