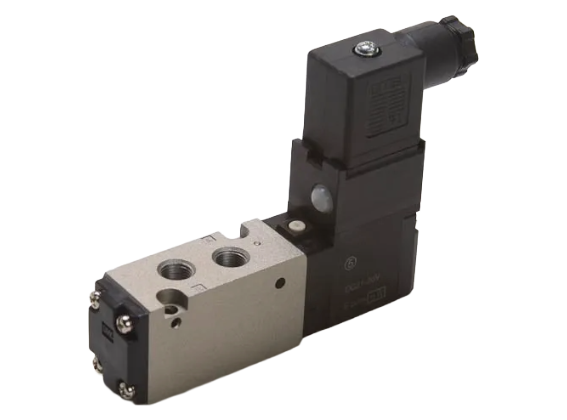

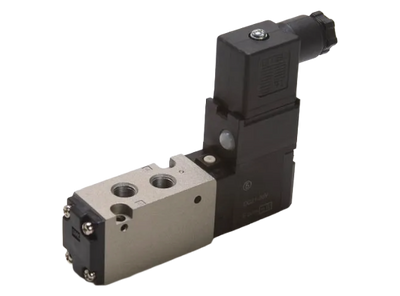

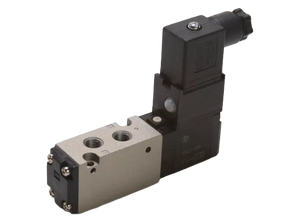

SMC VFS21305DZ02F (VFS2130-5DZ-02F) - 5 Port Pilot Operated Solenoid Valve, 24 VDC DIN Terminal, G1/4 Port
SMC VFS21305DZ02F 5 Port Pilot Operated Solenoid Valve — 24 VDC DIN terminal with light/surge voltage suppressor on a G1/4 metal seal body. 2 position single, metal seal, body ported, 24 VDC, DIN terminal with light/surge voltage suppressor, G1/4 port, internal pilot.
MPN: VFS2130-5DZ-02F · SKU: VFS21305DZ02F
VFS2130-5DZ-02F Applications
The SMC VFS21305DZ02F is used in general factory automation where medium and large pneumatic cylinders must be driven reliably. It is suited to machine tool clamping, press and assembly line actuation, and material handling stations that need a rugged metal seal spool. The DIN terminal entry with built-in light and surge voltage suppressor protects the 24 VDC control output and gives clear visual switching confirmation, while the metal seal main valve construction delivers a long service life under continuous duty.
VFS2130-5DZ-02F Specifications
| Brand | SMC | Manufacturer Part No. | VFS2130-5DZ-02F |
| Product Type | 5 Port Pilot Operated Solenoid Valve | Series | VFS2000 |
| SMC Series Description | VFS2000 Series 5 Port Pilot Operated Solenoid Valve, Metal Seal, Body Ported | Type Of Actuation | 1 - 2 Position Single |
| Body Size | 30 - Pilot Individual EXH 30 | Pilot Type | Internal Pilot |
| Rated Voltage | 5 - 24 VDC | Electrical Entry | D - DIN Terminal |
| Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor | Manual Override | Non-locking Push Type (Flush) |
| Port Size | 02 - 1/4 | Thread Type | F - G |
| Bracket | None |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
