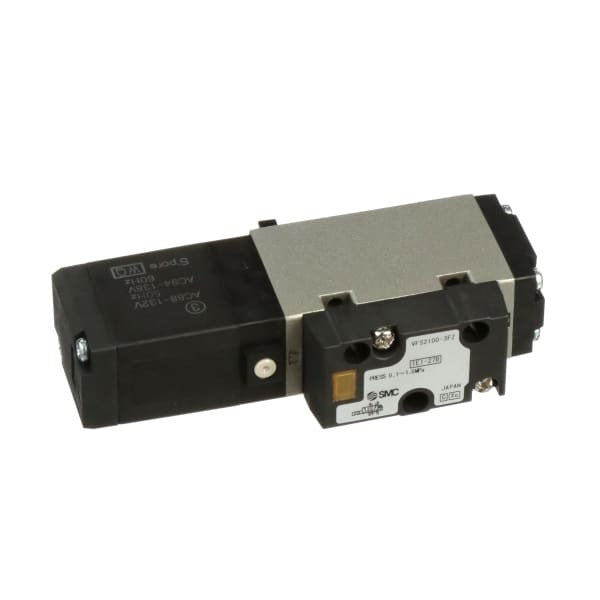

SMC VFS21003FZ (VFS2100-3FZ) - 5 Port Pilot Operated Solenoid Valve, 110 to 120 VAC, For Manifold Without Sub-plate
SMC VFS21003FZ 5 Port Pilot Operated Solenoid Valve — Metal seal manifold valve without sub-plate, on 110 to 120 VAC. 2 position single, internal pilot, 110 to 120 VAC 50/60Hz, with light/surge voltage suppressor, side ported, without sub-plate for manifold, metal seal main valve.
MPN: VFS2100-3FZ · SKU: VFS21003FZ
VFS2100-3FZ Applications
The SMC VFS21003FZ is the metal-seal manifold valve supplied without a sub-plate and wound for 110 to 120 VAC, so it mounts onto a VV5FS manifold rather than being piped individually. It is used to direct compressed air to medium and large cylinders. It is suited for manifold-mounted valve banks, assembly and handling lines, and machines retaining AC control wiring. The metal seal construction gives long service life and fast response, and the surge suppressor protects the AC switching device.
VFS2100-3FZ Specifications
| Brand | SMC | Manufacturer Part No. | VFS2100-3FZ |
| Product Type | 5 Port Pilot Operated Solenoid Valve, Metal Seal, Plug-in | Series | VFS2000 |
| Type Of Actuation | 1 - 2 Position Single | Pilot Type | Internal Pilot |
| Rated Voltage | 3 - 110 To 120 VAC 50/60Hz | Option | Z - With Light/Surge Voltage Suppressor |
| Pilot Valve Manual Override | Non-locking Push Type (Flush) | Porting Specifications | Side Ported |
| Port Size | Without Sub-plate (For manifold) | Thread Type | Rc |
| Manifold Type No. | VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5 |
