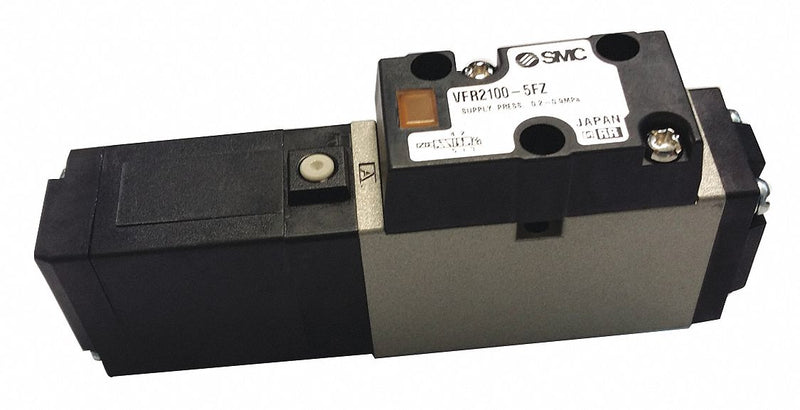

SMC VFR21005FZ01 (VFR2100-5FZ-01) - 5 Port Pilot Operated Solenoid Valve, 1/8 Port, 24 VDC With Light/Surge Voltage Suppressor
SMC VFR21005FZ01 5 Port Pilot Operated Solenoid Valve — Rubber seal 2 position single valve with 1/8 port and surge suppressor. 2 position single, internal pilot, 24 VDC, with light/surge voltage suppressor, side ported, port size 1/8, rubber seal main valve.
MPN: VFR2100-5FZ-01 · SKU: VFR21005FZ01
VFR2100-5FZ-01 Applications
The SMC VFR21005FZ01 is the rubber-seal 2-position single valve on a 1/8 port, fitted with a light and surge voltage suppressor to protect the driving PLC output. It is used to direct compressed air to cylinders in automated machinery. It is suited for assembly and handling stations, packaging machines, and general cylinder actuation. A rubber seal main valve gives tight shut-off and low leakage, and the built-in suppressor absorbs the coil's inductive kick when the output switches off.
VFR2100-5FZ-01 Specifications
| Brand | SMC | Manufacturer Part No. | VFR2100-5FZ-01 |
| Product Type | 5 Port Pilot Operated Solenoid Valve, Rubber Seal, Plug-in | Series | VFR2000 |
| Symbol | 1 - 2 Position Single | Pilot Type | Internal Pilot |
| Rated Voltage | 5 - 24 VDC | Option | Z - With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type | Porting Specifications | Side Ported or None |
| Port Size | 01 - 1/8 | Thread Type | Rc or None |
