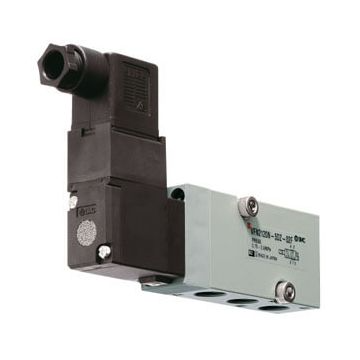

SMC VFN2220N5D02FQ (VFN2220N-5D-02F-Q) - NAMUR Interface 5 Port Solenoid Valve, G (PF) Thread, 24 VDC Double Solenoid
SMC VFN2220N5D02FQ NAMUR Interface 5 Port Solenoid Valve — Double solenoid with a full DIN terminal entry including connector. Double solenoid, 24 VDC, DIN terminal, without light/surge voltage suppressor, G (PF) thread, CE/UKCA-compliant.
MPN: VFN2220N-5D-02F-Q · SKU: VFN2220N5D02FQ
VFN2220N-5D-02F-Q Applications
The SMC VFN2220N5D02FQ is the double-solenoid NAMUR valve with a complete DIN terminal entry, so it latches its last commanded position when power is lost instead of springing back. It is used to actuate NAMUR-interface process valve actuators. It is suited for ball and butterfly valve control, pipeline isolation that must hold state through a power interruption, and process skids. The two coils give memory action, which single-solenoid valves cannot provide on loss of signal.
VFN2220N-5D-02F-Q Specifications
| Brand | SMC | Manufacturer Part No. | VFN2220N-5D-02F-Q |
| Product Type | NAMUR Interface 5 Port Solenoid Valve | Series | VFN2000N |
| Solenoid | 2 - Double Solenoid | Voltage | 5 - 24 VDC |
| Electrical Entry | D - DIN Terminal | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type (Flush) | Thread Type | F - G (PF) |
| CE Marking | Q - CE/UKCA-compliant | Interface | Complies with NAMUR |
