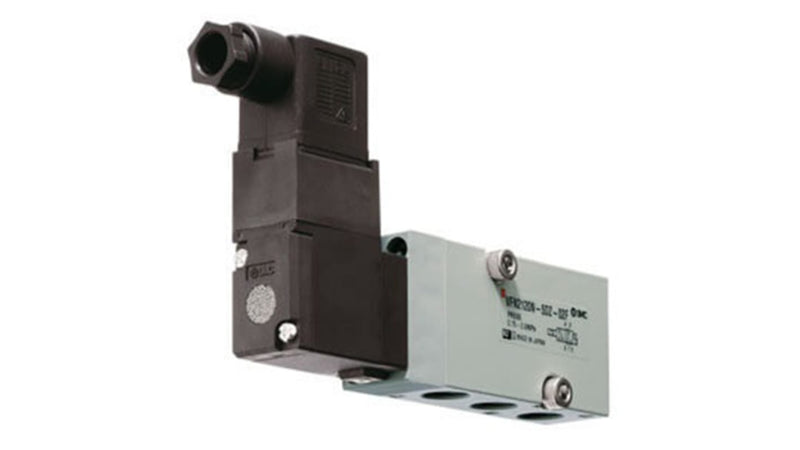

SMC VFN2120N5YO02FQ (VFN2120N-5YO-02F-Q) - NAMUR Interface 5 Port Solenoid Valve, G (PF) Thread, 24 VDC Single Solenoid
SMC VFN2120N5YO02FQ NAMUR Interface 5 Port Solenoid Valve — Single solenoid with DIN terminal electrical entry supplied without a connector. Single solenoid, 24 VDC, DIN terminal without connector, without light/surge voltage suppressor, G (PF) thread, CE/UKCA-compliant.
MPN: VFN2120N-5YO-02F-Q · SKU: VFN2120N5YO02FQ
VFN2120N-5YO-02F-Q Applications
The SMC VFN2120N5YO02FQ is the single-solenoid NAMUR valve with a DIN terminal entry supplied without the connector, letting the panel builder fit their own cable gland and DIN plug. It is used to actuate process valves whose actuators carry the NAMUR interface. It is suited for ball and butterfly valve actuation, tank and pipeline isolation, and process skids. Because the interface face complies with NAMUR, it bolts straight onto the actuator with no tubing or bracketry.
VFN2120N-5YO-02F-Q Specifications
| Brand | SMC | Manufacturer Part No. | VFN2120N-5YO-02F-Q |
| Product Type | NAMUR Interface 5 Port Solenoid Valve | Series | VFN2000N |
| Solenoid | 1 - Single Solenoid | Voltage | 5 - 24 VDC |
| Electrical Entry | YO - DIN Terminal (Without Connector) | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type (Flush) | Thread Type | F - G (PF) |
| CE Marking | Q - CE/UKCA-compliant | Interface | Complies with NAMUR |
