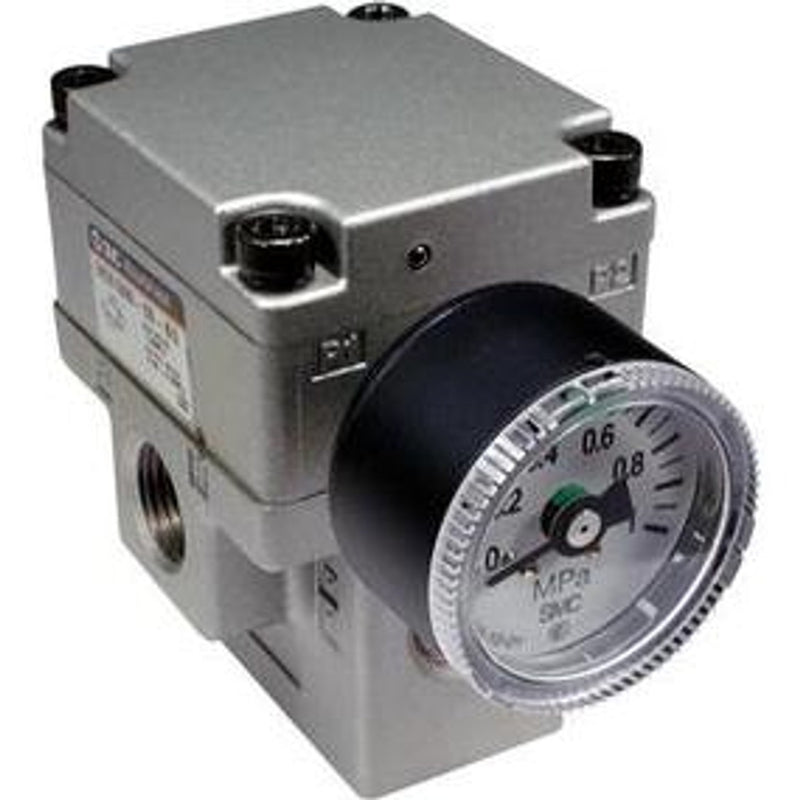

SMC VEX170112N3DZ (VEX1701-12N3DZ) - Power Valve, 3-port poppet

SMC VEX170112N3DZ Power Valve — 3-port large-capacity poppet exhausting pressure regulator valve. SMC VEX1 Series power valve / regulator valve. 3-port large-capacity poppet exhausting regulator with a relief port equal in size to the connection port; outlet (A port) pressure follows the pilot (P1) pressure. Maximum operating pressure 1.0 MPa, ambient and fluid temperature 0 to 50 C.

MPN: VEX1701-12N3DZ · SKU: VEX170112N3DZ

VEX1701-12N3DZ Applications

SMC VEX1701-12N3DZ is a VEX1 power valve, a large-capacity 3-port poppet-type regulator that sets outlet pressure in proportion to an applied pilot pressure. Because the exhaust (relief) port matches the connection port size, it exhausts quickly and holds outlet pressure stable even under large flow, which suits pressing, clamping, tension control and other force-regulating tasks. Balanced-poppet construction supplies air when demand rises and vents to atmosphere when outlet pressure exceeds the setpoint, giving responsive high-flow pressure control up to 1.0 MPa.

VEX1701-12N3DZ Specifications
