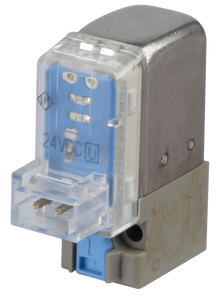

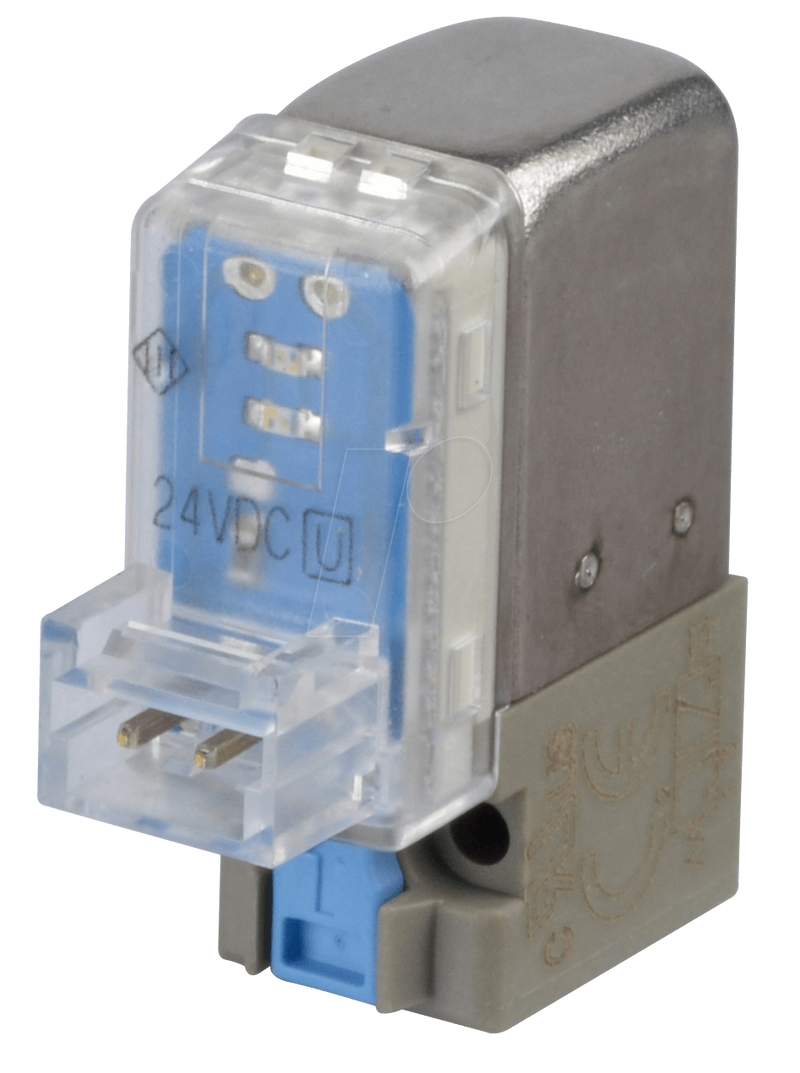

SMC V114A5LOUB (V114A-5LOUB) - 3 Port Solenoid Valve, Large Flow Type, L Plug Connector Without Connector
SMC V114A5LOUB 3 Port Solenoid Valve — large flow type with locking slotted manual override and surge suppressor. V100 Series, 3 port direct operated, large flow type, base mounted, normally closed, 24 VDC.
MPN: V114A-5LOUB · SKU: V114A5LOUB
V114A-5LOUB Applications
The SMC V114A5LOUB is the large flow variant of the V100 3 port valve, chosen when a standard body cannot pass enough air to stroke a cylinder or pilot chamber quickly. Its locking slotted manual override lets a technician hold the valve open with a screwdriver during commissioning and leak testing without energising the coil, and the built-in light/surge voltage suppressor protects PLC output cards from coil back-EMF. It is suited for machine setup and diagnostics, pilot duty on larger process valves, and vacuum circuits. The L plug connector is supplied without a connector so the wiring harness can be specified separately.
V114A-5LOUB Specifications
| Brand | SMC | Manufacturer Part No. | V114A-5LOUB |
| Product Type | 3 Port Solenoid Valve | Series | V100 |
| Configuration | Direct Operated, Large Flow Type, Base Mounted | Type Of Actuation | 1 (Normally Closed) |
| Rated Voltage | 5 (24 VDC) | Electrical Entry | LO (L Plug Connector, Without Connector) |
| Light/Surge Voltage Suppressor | U (With Light/Surge Voltage Suppressor) | Manual Override | B (Locking Slotted) |
| Port Size | Without Sub-plate | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | VV100-S41 |
