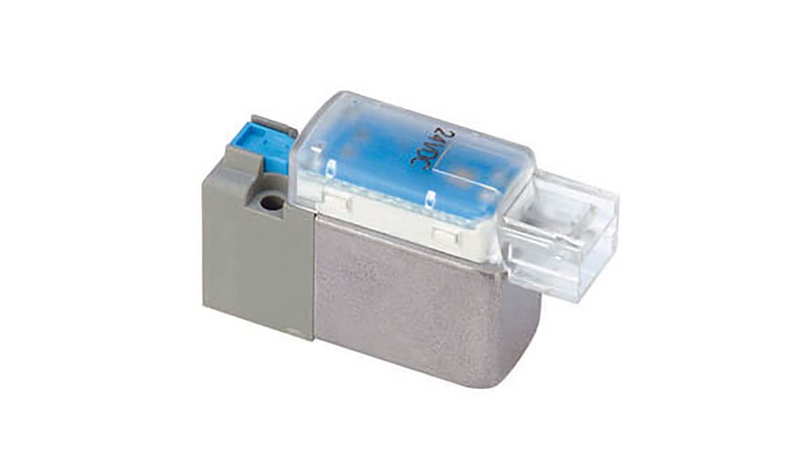

SMC V1145G (V114-5G) - 3 Port Solenoid Valve, 24 VDC Coil, Grommet Lead Wire Entry
SMC V1145G 3 Port Solenoid Valve — grommet lead wire entry with no surge suppressor. V100 Series, 3 port direct operated, base mounted, normally closed, 24 VDC, 0.35 W coil, 0.1 W with power saving circuit.
MPN: V114-5G · SKU: V1145G
V114-5G Applications
The SMC V1145G is a compact 3 port direct operated solenoid valve used to pilot larger valves and actuators in packaging, electronics assembly and small-parts handling machinery. Its plain grommet lead wire entry suits hard-wired panels and cable-duct routing where a plug connector would add bulk, and it is supplied without a sub-plate so it can be mounted straight onto a VV100-S41 manifold. It is suited for vacuum pad switching, air blow control, and pilot duty on process valves. A power saving circuit drops holding consumption to 0.1 W, so banks of these valves can run continuously without loading the supply.
V114-5G Specifications
| Brand | SMC | Manufacturer Part No. | V114-5G |
| Product Type | 3 Port Solenoid Valve | Series | V100 |
| Configuration | Direct Operated, Standard Type, Base Mounted | Type Of Actuation | 1 (Normally Closed) |
| Coil Specifications | 0.35 W | Rated Voltage | 5 (24 VDC) |
| Electrical Entry | G (Grommet, Lead Wire Length 0.3 m) | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push | Port Size | Without Sub-plate |
| Power Consumption | 0.1 W (with power saving circuit) | Manifold Type No. | VV100-S41 |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
