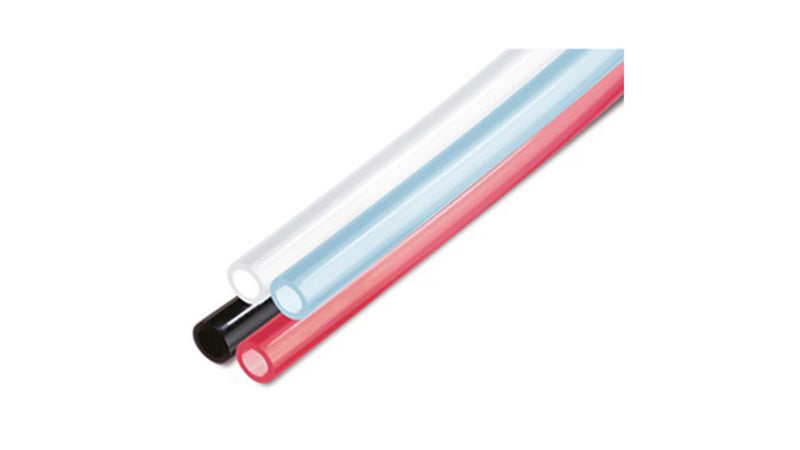

SMC TU1065BU100 (TU1065BU-100) - Polyurethane Tubing, Ø10 x Ø6.5, Blue 100 m

SMC TU1065BU100 Polyurethane Tubing — Ø10 x Ø6.5 mm, blue, 100 m roll. SMC TU Series polyurethane tubing, Ø10 mm O.D. x Ø6.5 mm I.D., blue. Max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C). Operating temperature -20 to +60°C. Min. bending radius 27 mm. Supplied as a 100 m roll. Compatible with One-touch, Insert, Self-align and Miniature fittings.

MPN: TU1065BU-100 · SKU: TU1065BU100

TU1065BU-100 Applications

General-purpose pneumatic tubing for larger-flow air-line runs and One-touch fitting connections in factory automation. The Ø10 mm outside diameter with Ø6.5 mm bore suits high-flow supply and drive-air lines, while the flexible polyurethane wall bends to a 27 mm minimum radius. Rated to 0.8 MPa at 20°C over a -20 to +60°C range, the blue colour aids clear circuit identification on machinery and assembly equipment.

TU1065BU-100 Specifications
