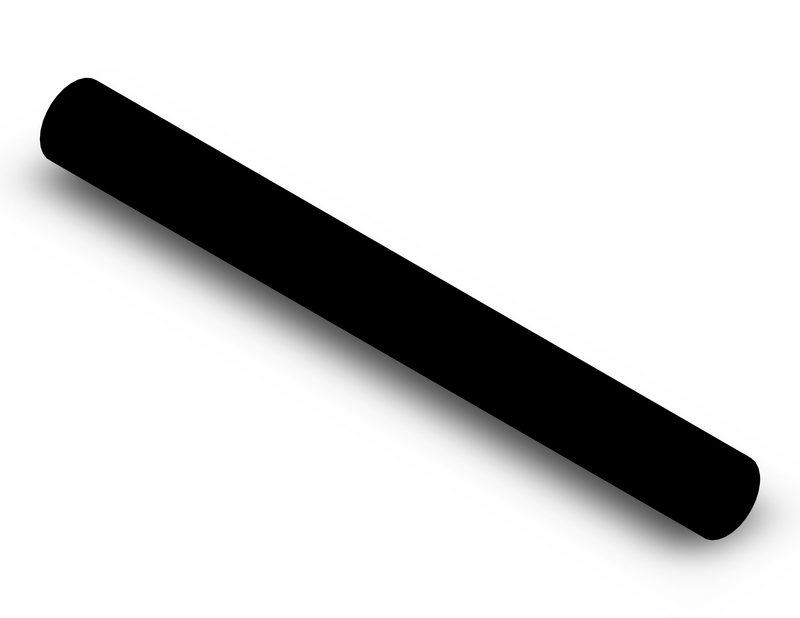

SMC TU1065B100 (TU1065B-100) - Polyurethane Tubing, Ø10 x Ø6.5, Black 100 m

SMC TU1065B100 Polyurethane Tubing — Ø10 x Ø6.5 mm, black, 100 m roll. SMC TU Series polyurethane tubing, Ø10 mm O.D. x Ø6.5 mm I.D., black. Max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C). Operating temperature -20 to +60°C. Min. bending radius 27 mm. Supplied as a 100 m roll. Compatible with One-touch, Insert, Self-align and Miniature fittings.

MPN: TU1065B-100 · SKU: TU1065B100

TU1065B-100 Applications

General-purpose pneumatic tubing for larger-flow air-line runs and One-touch fitting connections in factory automation. The Ø10 mm outside diameter with Ø6.5 mm bore suits high-flow supply and drive-air lines, while the polyurethane wall flexes to a 27 mm minimum bending radius. Rated to 0.8 MPa at 20°C over a -20 to +60°C range, the black colour is a common default for main supply piping on machinery and production equipment.

TU1065B-100 Specifications
