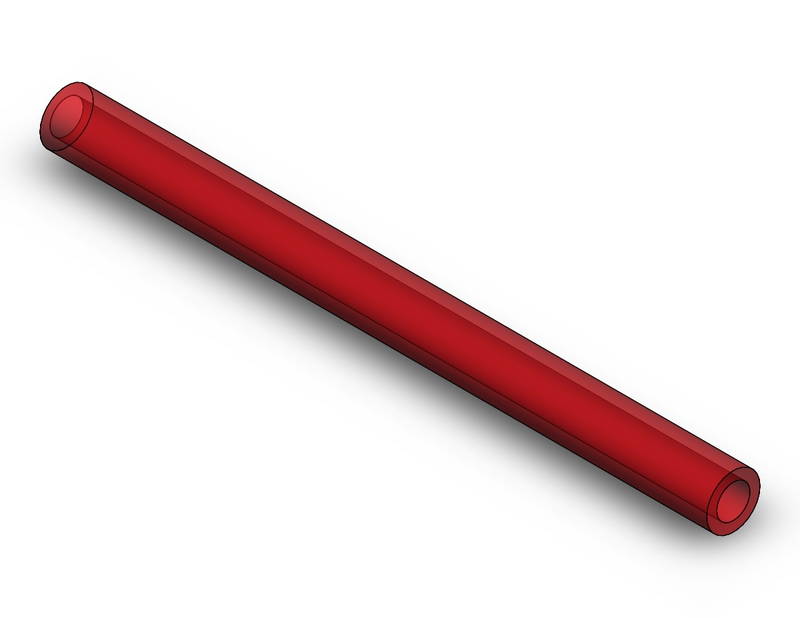

SMC TU0805R100 (TU0805R-100) - Polyurethane Tubing, Ø8 x Ø5, Red 100 m

SMC TU0805R100 Polyurethane Tubing — Ø8 x Ø5 mm, red, 100 m roll. SMC TU Series polyurethane tubing, Ø8 mm O.D. x Ø5 mm I.D., red. Max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C). Operating temperature -20 to +60°C. Min. bending radius 20 mm. Supplied as a 100 m roll. Compatible with One-touch, Insert, Self-align and Miniature fittings.

MPN: TU0805R-100 · SKU: TU0805R100

TU0805R-100 Applications

General-purpose pneumatic tubing for air-line piping, One-touch fittings and actuator supply in factory automation. The Ø8 mm bore gives good air flow while the flexible polyurethane wall bends to a 20 mm minimum radius for compact routing. Rated to 0.8 MPa at 20°C across a -20 to +60°C range, the red colour is often reserved for pressure or supply lines to aid safe identification on machinery and assembly cells.

TU0805R-100 Specifications
