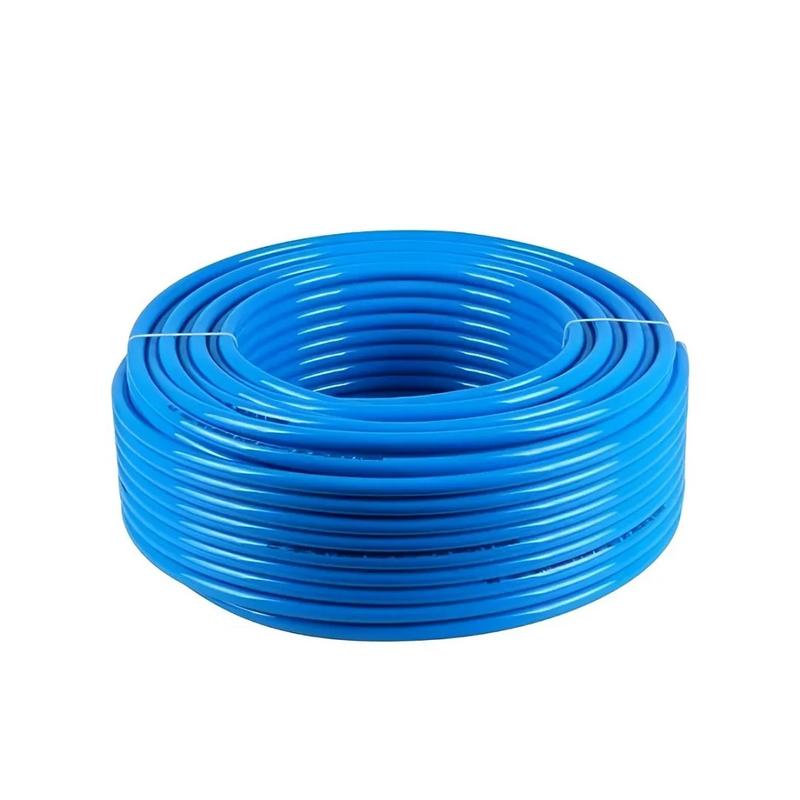

SMC TU0805BU3100 (TU0805BU3-100) - Polyurethane Tubing, Ø8 x Ø5, Medium Blue 100 m

SMC TU0805BU3100 Polyurethane Tubing — Ø8 x Ø5 mm, medium blue (BU3), 100 m roll. SMC TU Series polyurethane tubing, Ø8 mm O.D. x Ø5 mm I.D., medium blue (colour code BU3, opaque). Max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C). Operating temperature -20 to +60°C. Min. bending radius 20 mm. Supplied as a 100 m roll. Compatible with One-touch, Insert, Self-align and Miniature fittings.

MPN: TU0805BU3-100 · SKU: TU0805BU3100

TU0805BU3-100 Applications

General-purpose pneumatic tubing for air-line piping and One-touch fitting connections in factory automation, supplied in the medium-blue (BU3) opaque colour option for distinctive circuit identification. The Ø8 mm bore gives good flow while the flexible polyurethane wall bends to a 20 mm minimum radius for compact routing. Rated to 0.8 MPa at 20°C over a -20 to +60°C range, it suits supply and control-air lines on machinery and assembly equipment.

TU0805BU3-100 Specifications
