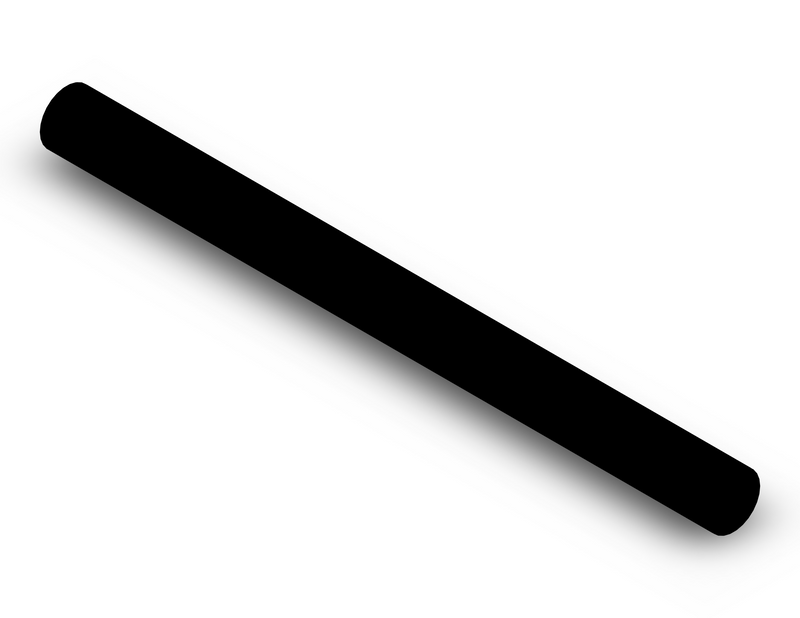

SMC TU0805B100 (TU0805B-100) - Polyurethane Tubing, Ø8 x Ø5, Black 100 m

SMC TU0805B100 Polyurethane Tubing — Ø8 x Ø5 mm, black, 100 m roll. SMC TU Series polyurethane tubing, Ø8 mm O.D. x Ø5 mm I.D., black. Max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C). Operating temperature -20 to +60°C. Min. bending radius 20 mm. Supplied as a 100 m roll. Compatible with One-touch, Insert, Self-align and Miniature fittings.

MPN: TU0805B-100 · SKU: TU0805B100

TU0805B-100 Applications

General-purpose pneumatic tubing for main air-line runs, One-touch fittings and actuator supply in factory automation. The Ø8 mm bore delivers higher flow than smaller sizes, while the flexible polyurethane wall and 20 mm minimum bending radius ease routing in machinery. Rated to 0.8 MPa at 20°C over a -20 to +60°C range, the black colour is a common default for primary supply and drive-air lines on production equipment.

TU0805B-100 Specifications
