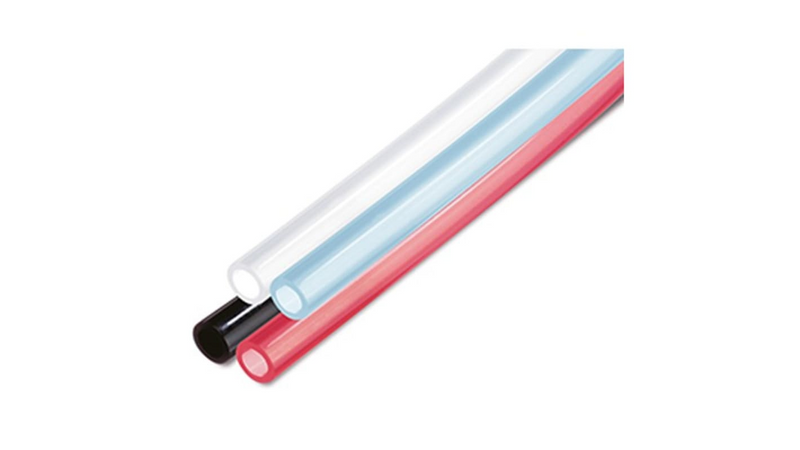

SMC TU0604B100 (TU0604B-100) - Polyurethane Tubing, Ø6 x Ø4, Black

SMC TU0604B100 Polyurethane Tubing — Polyurethane, Ø6 x Ø4, black, 100 m. SMC TU0604B-100 polyurethane tubing, Ø6 outer diameter x Ø4 inner diameter, black, supplied in a 100 m roll. Flexible polyurethane construction for general pneumatic piping. Fluid: air, max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C), operating temperature -20 to +60°C, min. bending radius 15 mm.

MPN: TU0604B-100 · SKU: TU0604B100

TU0604B-100 Applications

The TU polyurethane tubing is SMC's flexible general-purpose air line, easier to route than nylon and well suited to tight bends. The Ø6 x Ø4 size is one of the most common for machine air piping and actuator feeds, and the black 100 m roll is an economical bulk length for machine builds, panel wiring and maintenance stock. Compatible with SMC One-touch, insert and miniature fittings.

TU0604B-100 Specifications
