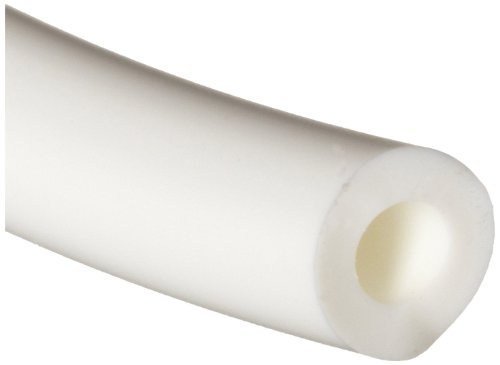

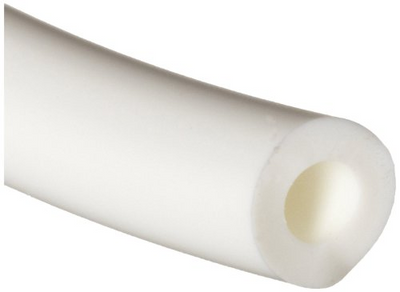

SMC TU0425W100 (TU0425W-100) - Polyurethane Tubing, Ø4 x Ø2.5, White

SMC TU0425W100 Polyurethane Tubing — Polyurethane, Ø4 x Ø2.5, white, 100 m. SMC TU0425W-100 polyurethane tubing, Ø4 outer diameter x Ø2.5 inner diameter, white, supplied in a 100 m roll. Flexible polyurethane construction for general pneumatic piping. Fluid: air, max. operating pressure 0.8 MPa at 20°C (0.65 MPa at 40°C, 0.5 MPa at 60°C), operating temperature -20 to +60°C, min. bending radius 10 mm.

MPN: TU0425W-100 · SKU: TU0425W100

TU0425W-100 Applications

The TU polyurethane tubing is SMC's flexible general-purpose air line, easier to route than nylon and well suited to tight bends. The Ø4 x Ø2.5 size handles low-flow instrument and control lines, and the white colour supports clean colour-coded layouts. The 100 m roll is an economical bulk length for panel wiring, machine builds and maintenance stock. Compatible with SMC One-touch, insert and miniature fittings.

TU0425W-100 Specifications
