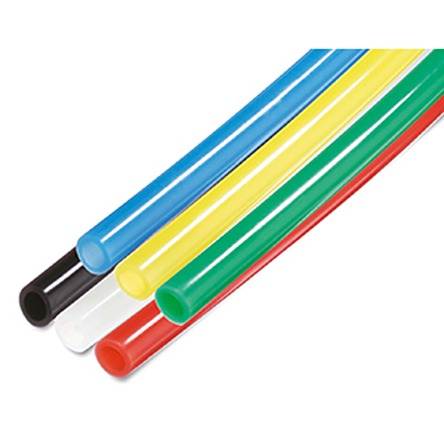

SMC TS1075BU20 (TS1075BU-20) - Soft Nylon Tubing, Ø10 x Ø7.5, Blue

SMC TS1075BU20 Soft Nylon Tubing — Soft nylon, Ø10 x Ø7.5, blue, 20 m. SMC TS1075BU-20 soft nylon tubing, Ø10 outer diameter x Ø7.5 inner diameter, blue, supplied in a 20 m roll. Made from Nylon 12 for pliable general pneumatic piping. Fluid: air/water, max. operating pressure 0.8 MPa (air/water at 20°C or less), operating temperature -40 to +100°C for air/oil and 0 to +50°C for water (no freezing), min. bending radius 55 mm.

MPN: TS1075BU-20 · SKU: TS1075BU20

TS1075BU-20 Applications

The TS soft nylon tubing in the larger Ø10 x Ø7.5 size carries higher air flow for main feeds, manifolds and larger actuators while staying more pliable than rigid nylon. Nylon 12 construction gives strong chemical resistance and durability, and the blue 20 m roll supports colour-coded pneumatic layouts on machines and panels. Compatible with SMC One-touch, insert and self-align fittings.

TS1075BU-20 Specifications
