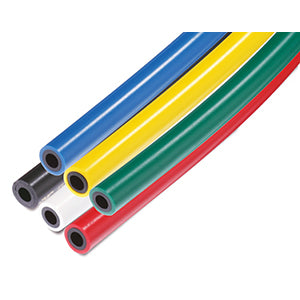

SMC TRBU1208B20 (TRBU1208B-20) - Flame-Resistant Polyurethane Tubing, Ø12 x Ø8, Black 20 m

SMC TRBU1208B20 Flame-Resistant Polyurethane Tubing — Ø12 x Ø8, Black, 20 m. SMC TRBU1208B-20 is a flame-resistant double-layer polyurethane tubing with Ø12 mm outer diameter and Ø8 mm inner diameter, supplied as a 20 m roll. The black outer layer is a flame-retardant polyolefin equivalent to UL-94 Standard V-0 over a polyurethane inner tube. Rated for air and water at a maximum operating pressure of 0.8 MPa (at 20°C), ambient and fluid temperature -20 to 60°C (water 0 to 40°C, no freezing), with a minimum bending radius of 35 mm.

MPN: TRBU1208B-20 · SKU: TRBU1208B20

TRBU1208B-20 Applications

Use SMC TRBU1208B-20 for air and water piping in areas where sparks from spot welders or similar equipment pose a fire risk. Its flame-retardant polyolefin outer layer (UL-94 V-0 equivalent) protects the polyurethane core, while the large Ø12 mm bore suits high-flow air and water supply lines. The 20 m roll suits maintenance, repair and smaller machine builds in welding cells and automated equipment.

TRBU1208B-20 Specifications
