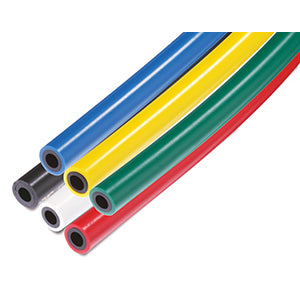

SMC TRBU0805B100 (TRBU0805B-100) - Flame-Resistant Polyurethane Tubing, Ø8 x Ø5, Black 100 m

SMC TRBU0805B100 Flame-Resistant Polyurethane Tubing — Ø8 x Ø5, Black, 100 m. SMC TRBU0805B-100 is a flame-resistant double-layer polyurethane tubing with Ø8 mm outer diameter and Ø5 mm inner diameter, supplied as a 100 m reel. The black outer layer is a flame-retardant polyolefin equivalent to UL-94 Standard V-0 over a polyurethane inner tube. Rated for air and water at a maximum operating pressure of 0.8 MPa (at 20°C), ambient and fluid temperature -20 to 60°C (water 0 to 40°C, no freezing), with a minimum bending radius of 20 mm.

MPN: TRBU0805B-100 · SKU: TRBU0805B100

TRBU0805B-100 Applications

Use SMC TRBU0805B-100 for air and water piping in areas where sparks from spot welders or similar equipment pose a fire risk. Its flame-retardant polyolefin outer layer (UL-94 V-0 equivalent) protects the polyurethane core, while the tube retains the resiliency and flexibility of standard polyurethane. The 100 m reel suits high-volume plant installation, machine tooling, welding cells and automated assembly lines.

TRBU0805B-100 Specifications
