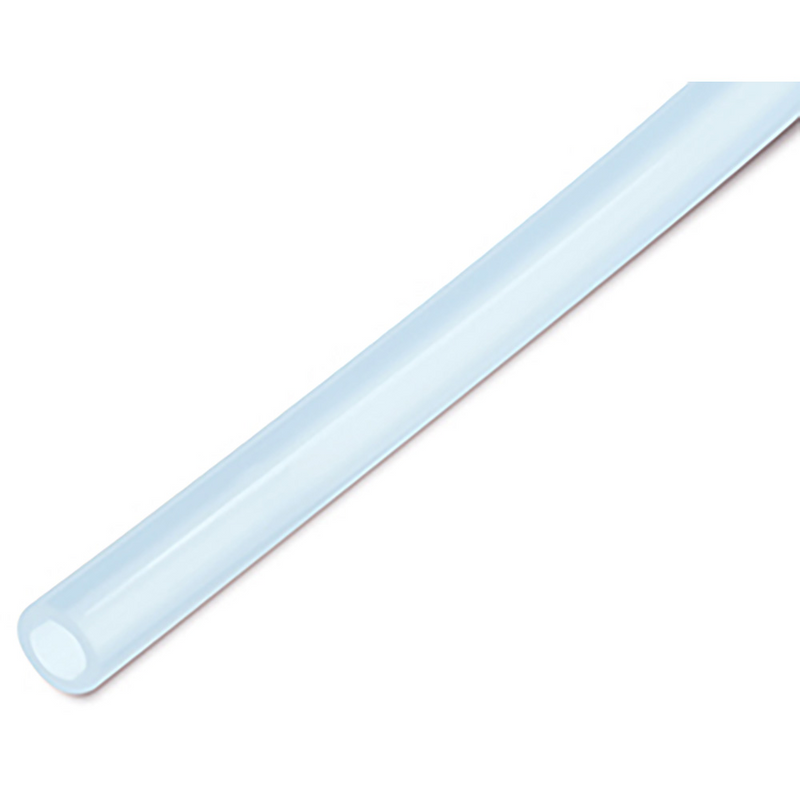

SMC TID0716 (TID07-16) - Soft Fluoropolymer Tubing, 1/4" x 0.156", Inch Size

SMC TID0716 Soft Fluoropolymer Tubing — 1/4" O.D. x 0.156" I.D., inch size, modified PTFE. TID Series soft fluoropolymer tubing, inch size. Material modified (denatured) PTFE for high flexibility with PTFE-level heat and chemical resistance. Tubing O.D. 1/4" (6.35 mm) x I.D. 0.156". Supplied as a 50 ft coil. Max operating pressure 1.6 MPa at 20°C. Max operating temperature 260°C (varies with pressure/size). Complies with FDA §177.1550 and Food Sanitation Law.

MPN: TID07-16 · SKU: TID0716

TID07-16 Applications

TID soft fluoropolymer tubing suits piping in environments demanding high heat and chemical resistance, such as semiconductor, chemical, food and medical processing. The modified PTFE construction offers greater flexibility than standard PTFE, making it easier to route in tight spaces while withstanding temperatures up to 260°C. The 1/4" size handles higher-flow clean fluid and gas lines, with FDA and Food Sanitation Law compliance for food-contact use.

TID07-16 Specifications
