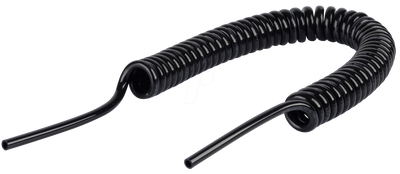

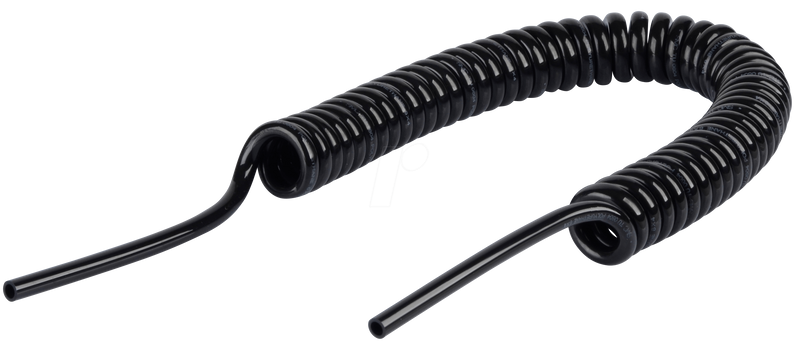

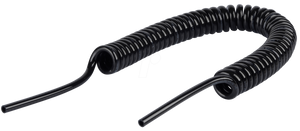

SMC TCU0604B1 (TCU0604B-1) - Polyurethane Coil Tubing, Ø6 x Ø4, Black 1 Core

SMC TCU0604B1 Polyurethane Coil Tubing — Ø6 x Ø4, black, 1 core coil. TCU Series polyurethane coil (spiral) tubing for flexible, compact piping. Tubing O.D. Ø6 mm x I.D. Ø4 mm, 1 core, black. Coil dimensions L 54 x ØD 27 mm. Fluid: air. Max operating pressure 0.5 MPa at 60°C (0.8 MPa at 20°C). Operating temperature -20 to 60°C. Compatible with One-touch, Insert, Self-align and Miniature fittings. RoHS compliant.

MPN: TCU0604B-1 · SKU: TCU0604B1

TCU0604B-1 Applications

TCU coil tubing provides flexible, self-retracting pneumatic piping ideal for moving or reciprocating parts such as robot arms, slide tables and sliding doors where a fixed straight tube would kink or snag. The spiral form keeps air lines tidy and out of the way while extending and retracting with the motion. The Ø6 x Ø4 black polyurethane construction suits general compressed-air control lines.

TCU0604B-1 Specifications
