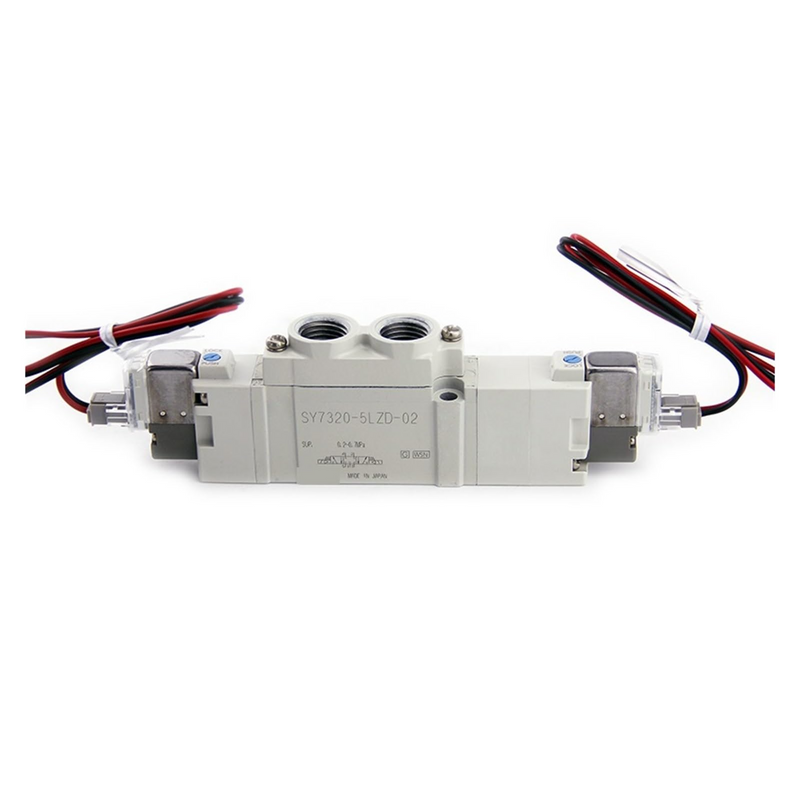

SMC SY73205LZ02 (SY7320-5LZ-02) - 5-Port Solenoid Valve, 5/3 Closed Center Solenoid, Rc1/4 Port

SMC SY73205LZ02 5-Port Solenoid Valve — 5/3 Closed Center with Lead Wire, Rc1/4 Port, 24 VDC. SMC SY7000 Series 5-port body-ported single-unit pilot-operated solenoid valve. 3-position closed center actuation, 24 VDC, L-type plug connector with lead wire (length 300 mm), with light/surge voltage suppressor. Push-turn locking type manual override. A/B port size 1/4 with Rc thread. Power consumption 0.1 W with power-saving circuit. Mounts on SS5Y7 manifolds.

MPN: SY7320-5LZ-02 · SKU: SY73205LZ02

SY7320-5LZ-02 Applications

The SY7320-5LZ-02 is a 5/3 closed-center solenoid valve that blocks all ports when de-energised to hold a double-acting cylinder mid-stroke and prevent drift, used for positioning and safe pressure-hold circuits. It ships with an L-type plug connector and 300 mm lead wire for ready connection, plus a built-in light/surge suppressor to protect controller outputs. Rc1/4 ports suit medium-flow control.

SY7320-5LZ-02 Specifications
