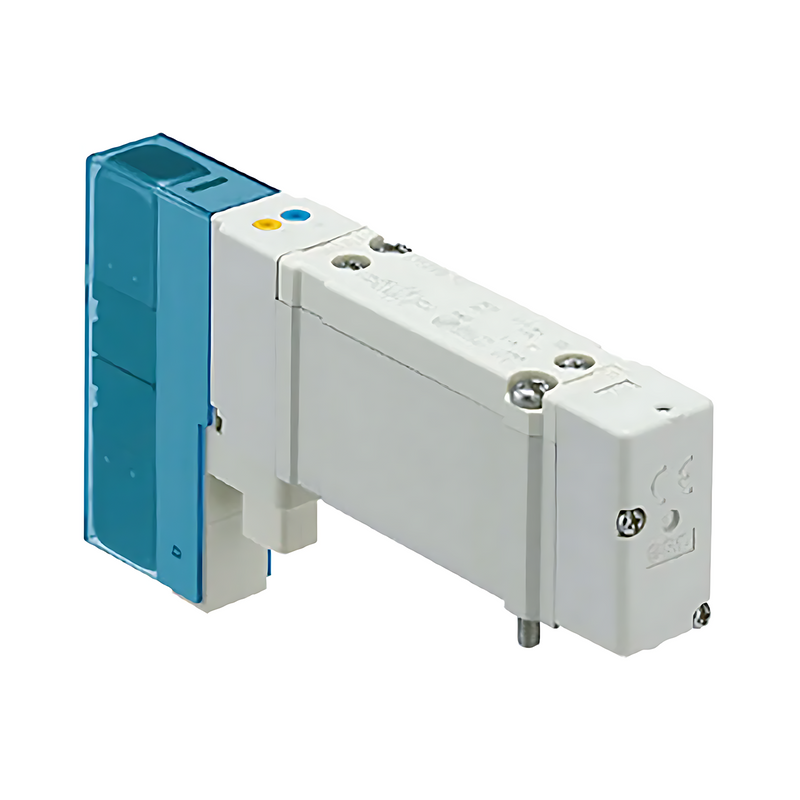

SMC SY53205YOC6FQ (SY5320-5YO-C6F-Q) - 5 Port Solenoid Valve, 24 VDC Coil, 3 Position Closed Center
SMC SY53205YOC6FQ 5 Port Solenoid Valve — 3 position CLOSED CENTER actuation, holding the actuator mid-stroke when de-energised. SY5000 series, 3 position closed center, 24 VDC, DIN (EN175301-803) terminal without connector, without light/surge voltage suppressor, push-turn locking manual override, one-touch fitting for Ø6 A/B port, G thread, CE-compliant, body ported single unit.
MPN: SY5320-5YO-C6F-Q · SKU: SY53205YOC6FQ
SY5320-5YO-C6F-Q Applications
The SMC SY53205YOC6FQ is the only 3 position CLOSED CENTER valve in this group: with both coils off the spool centres and blocks all ports, so a cylinder stops and holds wherever it happens to be. It is used in positioning, lifting and tensioning circuits that must pause mid-stroke. It suits vertical loads that must not drift, jog and inch control, and CE-marked export machinery plumbed in Ø6 tube. Closed centres also keep supply pressure trapped in the actuator, giving a stiffer hold than an exhaust-centre valve.
SY5320-5YO-C6F-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY5320-5YO-C6F-Q |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5320 | Type Of Actuation | 3 Position Closed Center |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | DIN (EN175301-803) Terminal Without Connector | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type | A/B Port Size | One-touch Fitting For Ø6 |
| Thread Type | G | Bracket | None |
| Made To Order | Standard | CE-compliant | CE-compliant |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
