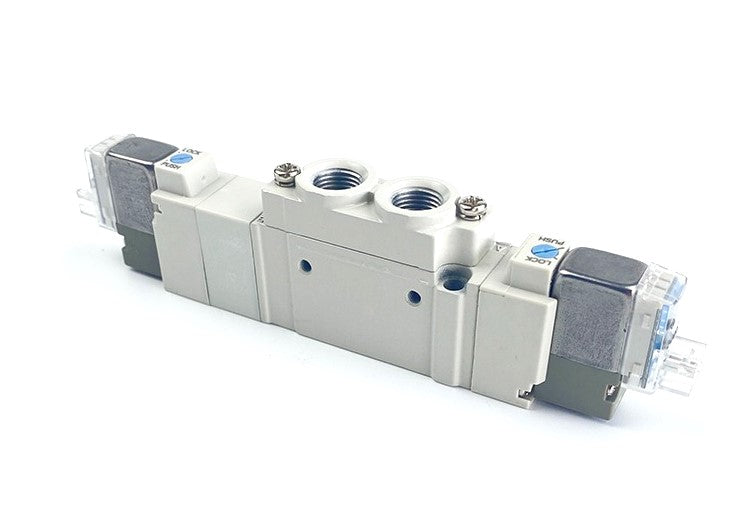

SMC SY53205YO01F (SY5320-5YO-01F) - 5-Port Solenoid Valve, 5/3 Closed Center Solenoid, G1/8 Port

SMC SY53205YO01F 5-Port Solenoid Valve — 5/3 Closed Center, G1/8 Port, 24 VDC. SMC SY5000 Series 5-port body-ported single-unit pilot-operated solenoid valve. 3-position closed center actuation, 24 VDC, DIN (EN175301-803) terminal electrical entry without connector. A/B port size 1/8 with G thread. Push-turn locking type manual override. Power consumption 0.1 W with power-saving circuit. Combined mounting of 3-port and 5-port valves possible; mounts on SS5Y5 manifolds.

MPN: SY5320-5YO-01F · SKU: SY53205YO01F

SY5320-5YO-01F Applications

The SY5320-5YO-01F is a 5/3 closed-center solenoid valve that blocks all ports when de-energised, holding a double-acting cylinder in an intermediate position and preventing drift. It is used for positioning, mid-stroke stops and safe pressure-hold circuits. The DIN terminal without connector allows flexible wiring and the G1/8 body ports suit BSPP plumbing.

SY5320-5YO-01F Specifications
