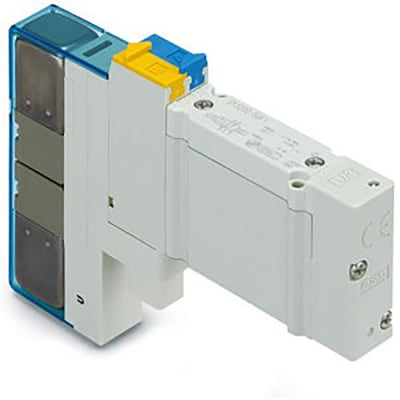

SMC SY52205DZ01FQ (SY5220-5DZ-01F-Q) - 5 Port Solenoid Valve, 24 VDC Coil, 2 Position Double Solenoid
SMC SY52205DZ01FQ 5 Port Solenoid Valve — 2 position double solenoid on a body-ported G1/8 valve with a DIN terminal. SY5000 series, 2 position double, 24 VDC, DIN terminal, with light/surge voltage suppressor, push-turn locking manual override, 1/8 A/B port, G thread, CE-compliant, body ported single unit.
MPN: SY5220-5DZ-01F-Q · SKU: SY52205DZ01FQ
SY5220-5DZ-01F-Q Applications
Where the body-ported SY5120 valves in this family are single-solenoid spring-return, the SMC SY52205DZ01FQ is 2 position DOUBLE - two coils, no spring, and the spool holds its last position when de-energised. It is used in clamping, indexing and palletising circuits on G1/8-piped machinery. It suits fixtures that must not release on power loss, sequence-controlled cells, and CE-marked export equipment. Its DIN terminal with light and surge suppressor shows coil state at a glance and protects the switching contacts driving it.
SY5220-5DZ-01F-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY5220-5DZ-01F-Q |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5220 | Type Of Actuation | 2 Position Double |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | DIN Terminal | Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type | A/B Port Size | 1/8 |
| Thread Type | G | Bracket | None |
| Made To Order | Standard | CE-compliant | CE-compliant |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
