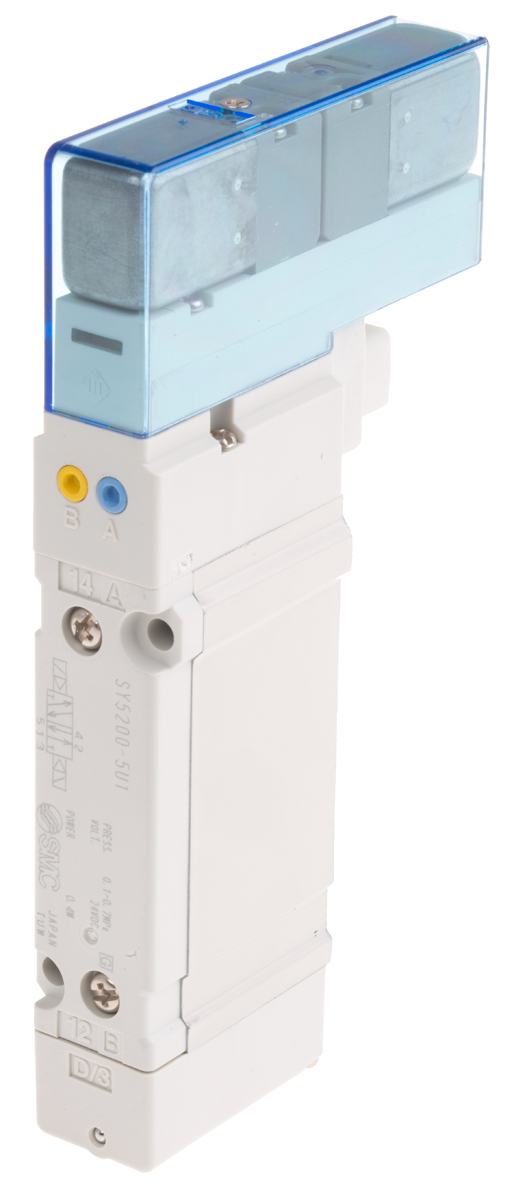

SMC SY52005U1 (SY5200-5U1) - 5 Port Solenoid Valve, 24 VDC Non-Polar Coil, 2 Position Double Solenoid
SMC SY52005U1 5 Port Solenoid Valve — 2 position DOUBLE solenoid actuation, so the spool latches in its last position on power loss. SY5000 series, 2 position double, rubber seal, internal pilot, 24 VDC, with light/surge voltage suppressor (non-polar), push-turn locking manual override, plug-in type base mounted.
MPN: SY5200-5U1 · SKU: SY52005U1
SY5200-5U1 Applications
The SMC SY52005U1 is a 2 position DOUBLE solenoid valve, which is what sets it apart from the single-solenoid SY51005U1NA on the same plug-in base: with two coils and no return spring the spool stays where it was left when power is removed. It is used in packaging, palletising and machine tool applications where an actuator must hold position through a power interruption. It suits clamping circuits, safety-critical holds, and memory functions in sequence control. Mounted plug-in on an SS5Y5 manifold, it needs no body porting of its own.
SY5200-5U1 Specifications
| Brand | SMC | Manufacturer Part No. | SY5200-5U1 |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5200 | Type Of Actuation | 2 Position Double |
| Seal | Rubber Seal | Pilot Type | Internal Pilot |
| Back Pressure Check Valve | None | Pilot Valve Option | Standard (0.7 MPa) |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Light/Surge Voltage Suppressor And Common Specification | With light/Surge Voltage Suppressor (Non-Polar) | Manual Override | Push-turn Locking Type |
| Type Of Mounting Screw | Round Head Combination Screw | Valve Construction | Plug-in Type Base Mounted |
| Service Life | 70 million cycles (Rubber seal) | Power Consumption | 0.1 W (with power saving circuit) / 0.35 W (standard) |
| Manifold Type No. | SS5Y5 |
