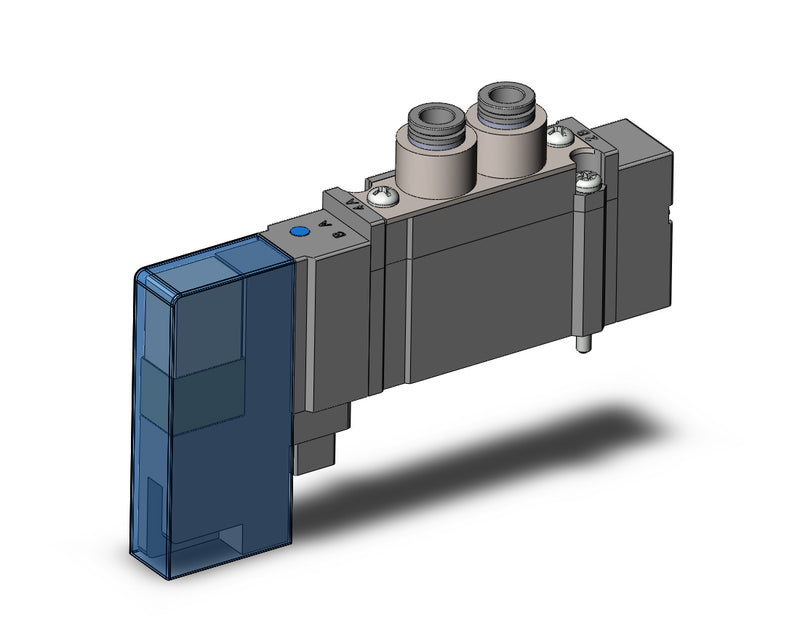

SMC SY51315Z1C6 (SY5131-5Z1-C6) - 5 Port Solenoid Valve, 24 VDC Positive Common Coil, Metal Seal Top Ported Valve
SMC SY51315Z1C6 5 Port Solenoid Valve — metal-seal top-ported valve with a positive-common surge suppressor. SY5000 series, 2 position single, metal seal, internal pilot, 24 VDC, with light/surge voltage suppressor (positive common), push-turn locking manual override, one-touch fitting for Ø6 A/B port, Rc thread, top ported type.
MPN: SY5131-5Z1-C6 · SKU: SY51315Z1C6
SY5131-5Z1-C6 Applications
The SMC SY51315Z1C6 is the only metal-seal, top-ported valve in this group: air leaves through the top face rather than the side, and the metal spool seal gives a 200 million cycle service life against 70 million for rubber-seal siblings. It is used in high-cycle assembly, electronics and test equipment where valve life dominates maintenance cost. It suits long-duty indexing machines, installations plumbed from above, and PLC outputs wired positive common. Metal seals also tolerate low-lubrication and long-dwell service better than rubber.
SY5131-5Z1-C6 Specifications
| Brand | SMC | Manufacturer Part No. | SY5131-5Z1-C6 |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5131 | Type Of Actuation | 2 Position Single |
| Seal | Metal Seal | Pilot Type | Internal Pilot |
| Back Pressure Check Valve | None | Pilot Valve Option | Standard (0.7 MPa) |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Light/Surge Voltage Suppressor And Common Specification | With light/Surge Voltage Suppressor (Positive Common) | Manual Override | Push-turn Locking Type |
| A/B Port Size | One-touch Fitting For Ø6 | Thread Type | Rc |
| Type Of Mounting Screw | Round Head Combination Screw | Valve Construction | Top Ported Type |
| Service Life | 200 million cycles (Metal seal) | Power Consumption | 0.1 W (with power saving circuit) / 0.35 W (standard) |
