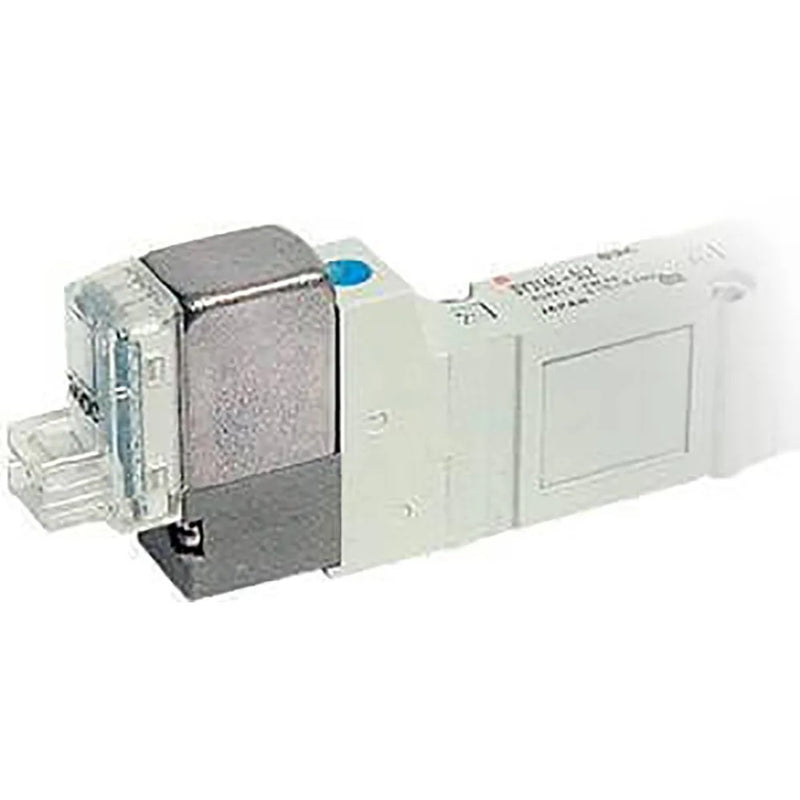

SMC SY51205YOC6FQ (SY5120-5YO-C6F-Q) - 5 Port Solenoid Valve, 24 VDC Coil, One-touch Fitting for Ø6 Tube
SMC SY51205YOC6FQ 5 Port Solenoid Valve — DIN EN175301-803 terminal without connector feeding a one-touch fitting for Ø6 tube. SY5000 series, 2 position single, 24 VDC, DIN (EN175301-803) terminal without connector, without light/surge voltage suppressor, push-turn locking manual override, one-touch fitting for Ø6 A/B port, G thread, CE-compliant, body ported single unit.
MPN: SY5120-5YO-C6F-Q · SKU: SY51205YOC6FQ
SY5120-5YO-C6F-Q Applications
The SMC SY51205YOC6FQ pairs a DIN EN175301-803 terminal supplied without its connector with an integral one-touch fitting for Ø6 tube - the standard-mount, push-in counterpart to the X10 side-mounted SY51205YO01FX10Q. It is used in packaging lines, conveyor systems and general assembly machines plumbed in 6 mm tube. It suits panels where DIN connectors are stocked separately, builds that avoid threaded adapters, and CE-marked export machines. Push-in tube termination cuts installation time and eliminates thread-sealing on the A and B ports.
SY5120-5YO-C6F-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY5120-5YO-C6F-Q |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5120 | Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | DIN (EN175301-803) Terminal Without Connector | Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type | A/B Port Size | One-touch Fitting For Ø6 |
| Thread Type | G | Bracket | None |
| Made To Order | Standard | CE-compliant | CE-compliant |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
