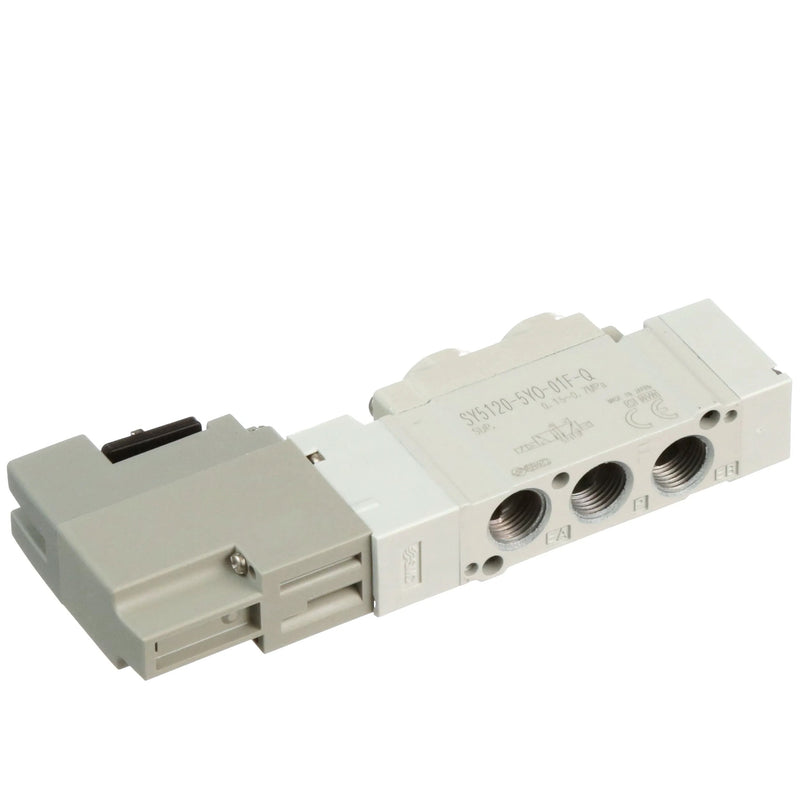

SMC SY51205YO01FQ (SY5120-5YO-01F-Q) - 5-Port Solenoid Valve, 5/2 Single Solenoid, G1/8 Port

SMC SY51205YO01FQ 5-Port Solenoid Valve — 5/2 Single Solenoid, G1/8 Port, 24 VDC. SMC SY5000 Series 5-port body-ported single-unit pilot-operated solenoid valve. 2-position single solenoid actuation, 24 VDC, DIN (EN175301-803) terminal electrical entry without connector. A/B port size 1/8 with G thread. Push-turn locking type manual override. Power consumption 0.1 W with power-saving circuit. CE-compliant. Combined mounting of 3-port and 5-port valves possible; mounts on SS5Y5 manifolds.

MPN: SY5120-5YO-01F-Q · SKU: SY51205YO01FQ

SY5120-5YO-01F-Q Applications

The SY5120-5YO-01F-Q is a 5/2 single-solenoid valve for controlling double-acting cylinders and standard directional air circuits. Its DIN terminal (EN175301-803) without connector gives flexible field wiring, while the G1/8 (BSPP) body ports suit European plumbing. The power-saving circuit keeps coil heating low for continuously energised duty, and CE compliance supports use in EU machinery.

SY5120-5YO-01F-Q Specifications
