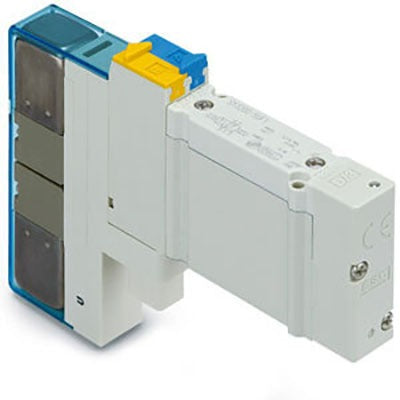

SMC SY51205WOUC6FQ (SY5120-5WOU-C6F-Q) - 5 Port Solenoid Valve, 24 VDC Non-Polar Coil, One-touch Fitting for Ø6 Tube
SMC SY51205WOUC6FQ 5 Port Solenoid Valve — M8 connector entry with a non-polar surge suppressor and a one-touch fitting for Ø6 tube. SY5000 series, 2 position single, 24 VDC, M8 connector without connector cable, with light/surge voltage suppressor (non-polar type), push-turn locking manual override, one-touch fitting for Ø6 A/B port, G thread, CE-compliant, body ported single unit.
MPN: SY5120-5WOU-C6F-Q · SKU: SY51205WOUC6FQ
SY5120-5WOU-C6F-Q Applications
The SMC SY51205WOUC6FQ combines an M8 connector entry with a non-polar light/surge suppressor, so the coil can be wired either way round, and terminates in a one-touch fitting for Ø6 tube rather than a threaded port. It is used in machine building, packaging and electronics assembly where push-in tubing speeds installation. It suits cells wired with M8 looms, panels where polarity errors must be tolerated, and CE-marked export machinery. The integral one-touch fitting removes a separate adapter and shortens the valve envelope.
SY5120-5WOU-C6F-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY5120-5WOU-C6F-Q |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5120 | Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | M8 Connector Without Connector Cable | Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor (Non-polar Type) |
| Manual Override | Push-turn Locking Type | A/B Port Size | One-touch Fitting For Ø6 |
| Thread Type | G | Bracket | None |
| Made To Order | Standard | CE-compliant | CE-compliant |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
