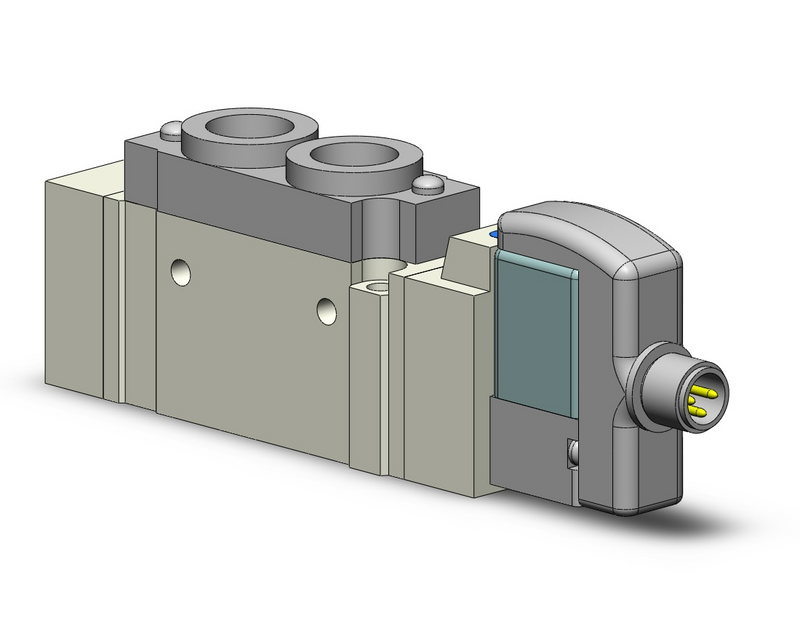

SMC SY51205WAOZ01N (SY5120-5WAOZ-01N) - 5 Port Solenoid Valve, 24 VDC Coil, M8 Connector to IEC60947-5-2
SMC SY51205WAOZ01N 5 Port Solenoid Valve — made-to-order M8 connector to IEC60947-5-2, supplied without connector cable, on a 1/8 NPT port. SY5000 series, 2 position single, single base type body, internal pilot, 24 VDC, M8 connector without connector cable, with light/surge voltage suppressor, push-turn locking manual override, 1/8 A/B port, NPT thread, made to order M8 connector conforming to IEC60947-5-2.
MPN: SY5120-5WAOZ-01N · SKU: SY51205WAOZ01N
SY5120-5WAOZ-01N Applications
The SMC SY51205WAOZ01N is built to SMC's made-to-order M8 specification conforming to IEC60947-5-2, and ships without the connector cable so the user chooses their own lead length. It is used in food, packaging and washdown-adjacent machinery where a circular screw-locking connector is preferred over a DIN terminal. It suits sensor-style M8 wiring looms, machines already standardised on IEC60947-5-2 connectors, and North American NPT piping. The screw-locking M8 interface resists vibration far better than a push-on plug.
SY5120-5WAOZ-01N Specifications
| Brand | SMC | Manufacturer Part No. | SY5120-5WAOZ-01N |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5120 | Type Of Actuation | 2 Position Single |
| Body Type | Single Base Type (20 For Manifold) | Pilot Type | Internal Pilot |
| Rated Voltage | 24 VDC | Electrical Entry | M8 Connector Without Connector Cable |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor | Manual Override | Push-turn Locking Type |
| A/B Port Size | 1/8 | Thread Type | NPT |
| Made To Order | Standard | CE-compliant | - |
| Catalogue Page | Made To Order M8 Connector Conforming to IEC60947-5-2 5 Port Valve | Power Consumption | 0.1 W (with power saving circuit) |
