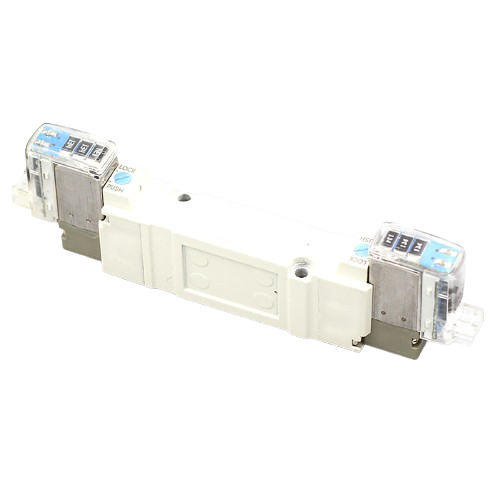

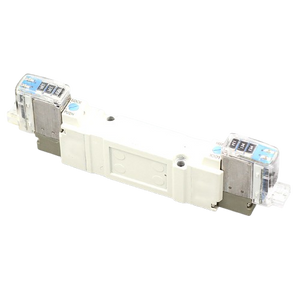

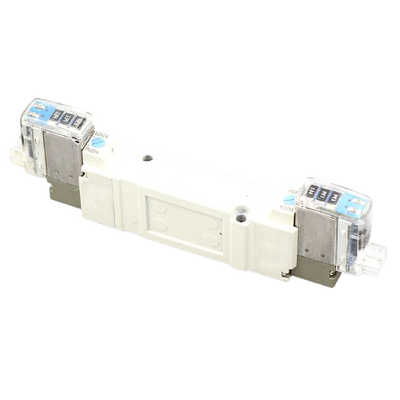

SMC SY51205LZD01 (SY5120-5LZD-01) - 5 Port Solenoid Valve, 24 VDC Coil, Slotted Locking Override
SMC SY51205LZD01 5 Port Solenoid Valve — push-turn locking SLOTTED manual override (the D option) instead of the plain locking override. SY5000 series, 2 position single, 24 VDC, L-type plug connector with lead wire (length 300 mm), with light/surge voltage suppressor, push-turn locking slotted manual override, 1/8 A/B port, Rc thread, body ported single unit.
MPN: SY5120-5LZD-01 · SKU: SY51205LZD01
SY5120-5LZD-01 Applications
The single character that separates the SMC SY51205LZD01 from the SY51205LZ01 is the D option: a push-turn locking SLOTTED manual override, operated with a screwdriver rather than by finger. It is used in machine build, packaging and process skids where the override must not be actuated by hand. It suits guarded or public-facing equipment, plants with lockout procedures that require a tool for manual actuation, and commissioning work where a technician overrides valves with a screwdriver. Everything else matches the SY51205LZ01 exactly.
SY5120-5LZD-01 Specifications
| Brand | SMC | Manufacturer Part No. | SY5120-5LZD-01 |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5120 | Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) | Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Slotted Type | A/B Port Size | 1/8 |
| Thread Type | Rc | Bracket | None |
| Made To Order | Standard | CE-compliant | - |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
