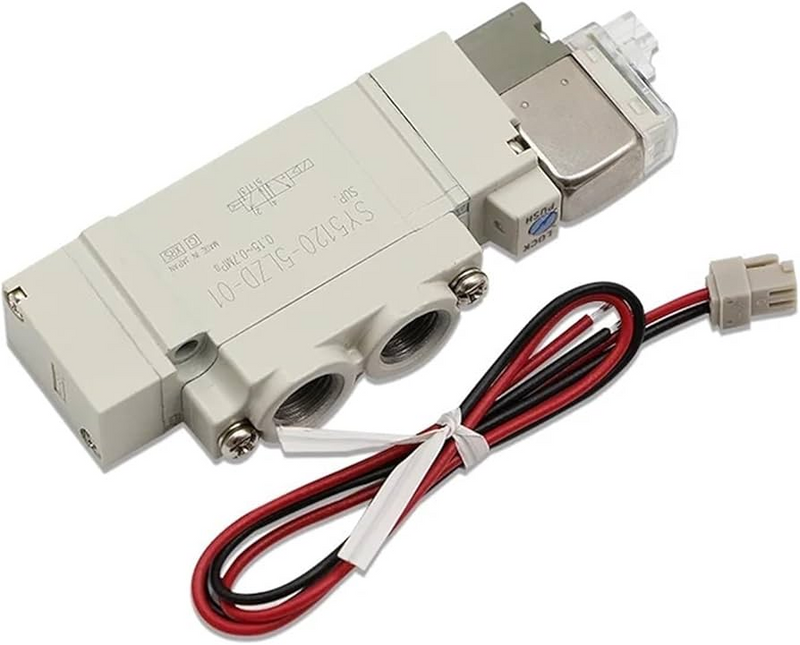

SMC SY51205LZ01 (SY5120-5LZ-01) - 5 Port Solenoid Valve, 24 VDC Coil, Rc1/8 Port
SMC SY51205LZ01 5 Port Solenoid Valve — L-type plug connector with a 300 mm lead wire and a standard push-turn locking override. SY5000 series, 2 position single, 24 VDC, L-type plug connector with lead wire (length 300 mm), with light/surge voltage suppressor, push-turn locking manual override, 1/8 A/B port, Rc thread, body ported single unit.
MPN: SY5120-5LZ-01 · SKU: SY51205LZ01
SY5120-5LZ-01 Applications
The SMC SY51205LZ01 ships with an L-type plug connector already fitted with a 300 mm lead wire, and keeps the standard push-turn locking manual override - the plain-override sibling of the slotted-override SY51205LZD01. It is used in packaging machinery, small assembly cells and conveyor stops where a valve must be dropped in and wired without a separate connector kit. It suits pre-wired sub-assemblies, tight enclosures where a DIN terminal will not fit, and Rc1/8 piping. The moulded lead wire removes a wiring step on the production line.
SY5120-5LZ-01 Specifications
| Brand | SMC | Manufacturer Part No. | SY5120-5LZ-01 |
| Product Type | 5 Port Solenoid Valve | Series | SY5000 |
| Model | SY5120 | Type Of Actuation | 2 Position Single |
| Coil Specifications | Standard | Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) | Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type | A/B Port Size | 1/8 |
| Thread Type | Rc | Bracket | None |
| Made To Order | Standard | CE-compliant | - |
| Valve Construction | Body Ported / Single Unit | Power Consumption | 0.1 W (with power saving circuit) |
| Manifold Type No. | SS5Y5 |
