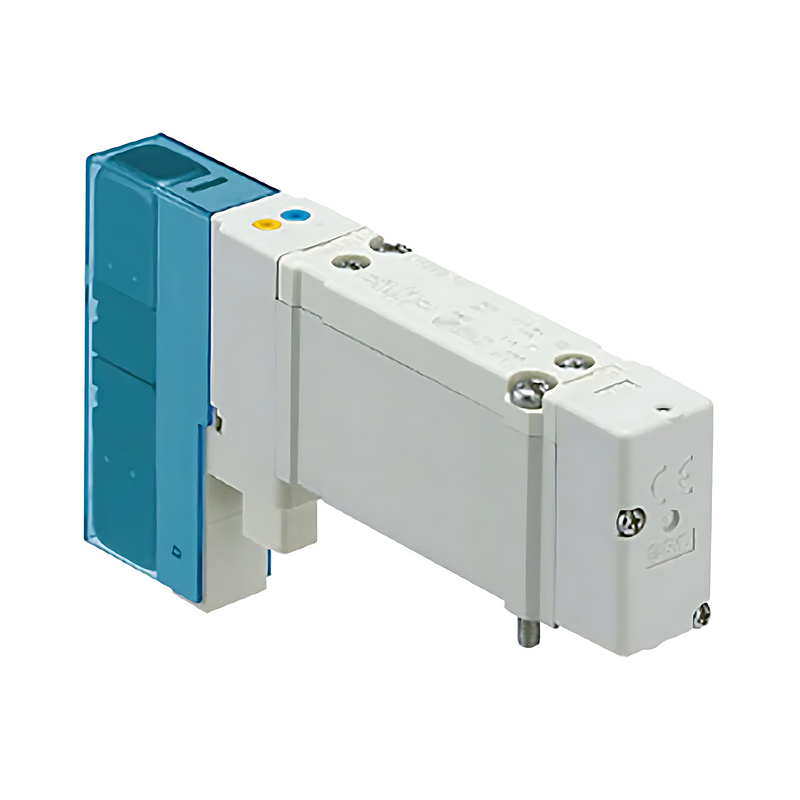

SMC SY51205DO01T (SY5120-5DO-01T) - 5 Port Solenoid Valve, 1/8 NPTF Port, DIN Terminal Entry
SMC SY51205DO01T 5 Port Solenoid Valve — 1/8 NPTF port with DIN terminal entry and no light/surge suppressor. SY5000 series, 2 position single, 24 VDC, for DIN terminal, 1/8 port, NPTF thread.
MPN: SY5120-5DO-01T · SKU: SY51205DO01T
SY5120-5DO-01T Applications
The SMC SY5120-5DO-01T is a body-ported 5 port solenoid valve used to drive double-acting pneumatic cylinders in packaging, automotive and general factory automation. Its 1/8 NPTF ports and DIN terminal entry suit North-American-threaded machines and panels wired with DIN 43650 connectors. It is suited to single-unit mounting near an actuator, retrofit of NPTF-plumbed equipment, and 24 VDC control from a PLC output card. The 2-position single solenoid design spring-returns on power loss, giving a defined safe state.
SY5120-5DO-01T Specifications
| Series | SY5000 | Manufacturer Part No. | SY5120-5DO-01T |
| Type Of Actuation | 2 Position Single | Coil Specifications | Standard |
| Rated Voltage | 24 VDC | Electrical Entry | For DIN Terminal |
| Light/Surge Voltage Suppressor | Without Light/Surge Voltage Suppressor | Manual Override | Push-turn Locking Type |
| A/B Port Size | 1/8 | Thread Type | NPTF |
| Bracket | None | Made To Order | Standard |
| Part Number Decode | 5 = SY5000 | 1 = 2 Position Single | 5 = 24 VDC | DO = For DIN Terminal | 01 = 1/8 | T = NPTF | Verification Note | Confirmed on SMC's WEB Catalog as SY5120-5DO-01T (Body Ported/Single Unit); the Value column reconstructs the as-listed SKU exactly. |
