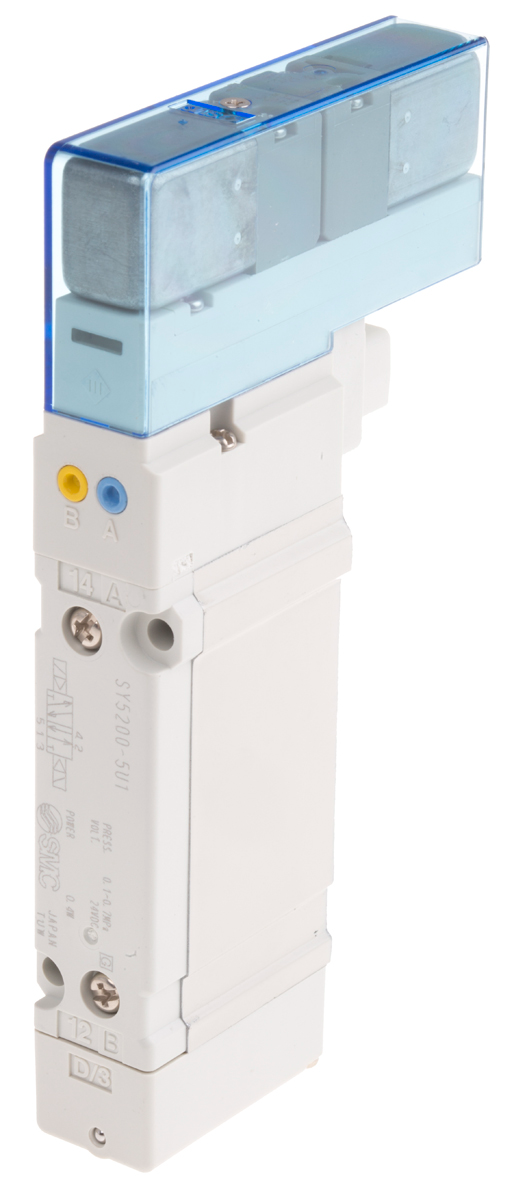

SMC SY51005U1 (SY5100-5U1) - 5 Port Solenoid Valve, SY5000 Body Size, 5/2 Single Solenoid
SMC SY51005U1 5 Port Solenoid Valve — larger SY5000 body size, one frame up from the SY3000 plug-in valves. 5 port, 2 position single solenoid, 24 VDC, SY5000 body size, plug-in type base mounted, rubber seal, internal pilot, non-polar light/surge voltage suppressor, push-turn locking manual override.
MPN: SY5100-5U1 · SKU: SY51005U1
SY5100-5U1 Applications
The SMC SY51005U1 is the SY5000 body size version of the plug-in valve, one frame larger than the otherwise identical SY31005U1. It is used on SS5Y5 manifolds in assembly, packaging and material handling machinery that needs more flow than an SY3000 station can pass. It is suited to larger bore cylinders, faster actuator cycles, and mixed manifolds combining sizes. Moving up a body size raises flow capacity while keeping the same plug-in wiring, manual override and 24 VDC coil as the rest of the SY range, so machine standards carry over unchanged.
SY5100-5U1 Specifications
| Brand | SMC | Manufacturer Part No. | SY5100-5U1 |
| Product Type | 5 Port Solenoid Valve, Plug-in Type, Base Mounted | Series | 5 - SY5000 |
| Type Of Actuation | 1 - 2 Position Single | Seal | 0 - Rubber Seal |
| Pilot Type | Internal Pilot | Back Pressure Check Valve | None |
| Pilot Valve Option | Standard (0.7 MPa) | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Light/Surge Voltage Suppressor And Common Specification | U - With Light/Surge Voltage Suppressor (Non-Polar) |
| Manual Override | Push-turn Locking Type | Type Of Mounting Screw | Round Head Combination Screw |
