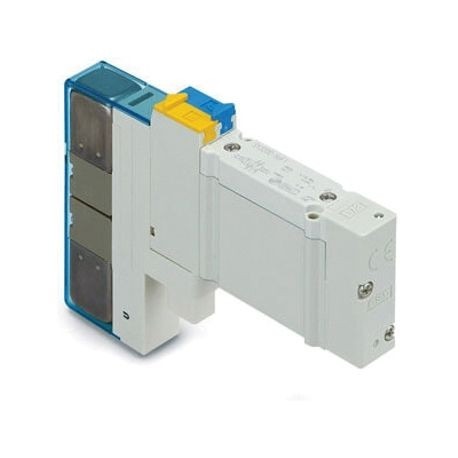

SMC SY3A005U1 (SY3A00-5U1) - 5-Port Solenoid Valve, Plug-in Base Mounted, 24 VDC Solenoid

SMC SY3A005U1 5-Port Solenoid Valve — 4-Position Dual 3-Port (N.C./N.C.), Plug-in Base Mounted, 24 VDC. SMC SY3000 Series plug-in type base-mounted 5-port pilot-operated solenoid valve, actuation type A: 4-position dual 3-port valve (N.C./N.C.), rubber seal, internal pilot, standard pilot 0.7 MPa. Rated voltage 24 VDC with light/surge voltage suppressor (non-polar). Push-turn locking type manual override. Power consumption 0.1 W with power-saving circuit (0.35 W standard). Service life up to 70 million cycles (rubber seal). Mounts on SS5Y3 plug-in manifold.

MPN: SY3A00-5U1 · SKU: SY3A005U1

SY3A00-5U1 Applications

The SY3A00-5U1 is a compact SY3000 plug-in valve configured as a 4-position dual 3-port unit (two independent normally-closed 3-port functions in one body). It suits high-density manifold-mounted control of single-acting cylinders, vacuum pads and independent on/off pneumatic circuits where space and wiring must be minimised. The non-polar light/surge suppressor eases wiring, and the power-saving circuit reduces heat and energy use in continuously energised applications.

SY3A00-5U1 Specifications
