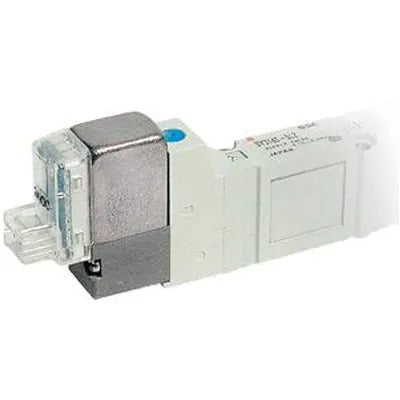

SMC SY31205LZM5F1 (SY3120-5LZ-M5-F1) - 5 Port Solenoid Valve, M5 x 0.8 Port, 300 mm Lead Wire
SMC SY31205LZM5F1 5 Port Solenoid Valve — L-type plug connector pre-wired with a 300 mm lead wire, plus a foot bracket. 5 port, 2 position single solenoid, 24 VDC, body ported single unit, M5 x 0.8 A/B ports, L-type plug connector with 300 mm lead wire, light/surge voltage suppressor, with foot bracket.
MPN: SY3120-5LZ-M5-F1 · SKU: SY31205LZM5F1
SY3120-5LZ-M5-F1 Applications
The SMC SY31205LZM5F1 arrives with the L-type plug connector already fitted to a 300 mm lead wire, unlike the SY31205LOZM5F1 which is supplied without the connector. It is used where machines are wired quickly to a nearby junction box or terminal strip in packaging, assembly and handling equipment. It is suited to short cable runs, foot-mounted valves on a frame, and builds where no in-house connector crimping is available. The pre-wired lead removes a termination step and gets a valve tested and running with only a two-wire connection.
SY3120-5LZ-M5-F1 Specifications
| Brand | SMC | Manufacturer Part No. | SY3120-5LZ-M5-F1 |
| Product Type | 5 Port Solenoid Valve, Body Ported, Single Unit | Series | 3 - SY3000 |
| Type Of Actuation | 1 - 2 Position Single | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Electrical Entry | L - L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor | Manual Override | Push-turn Locking Type |
| A/B Port Size | M5 - M5 x 0.8 | Thread Type | Rc |
| Bracket | F1 - With Foot Bracket | Made To Order | Standard |
| CE-compliant | - |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
