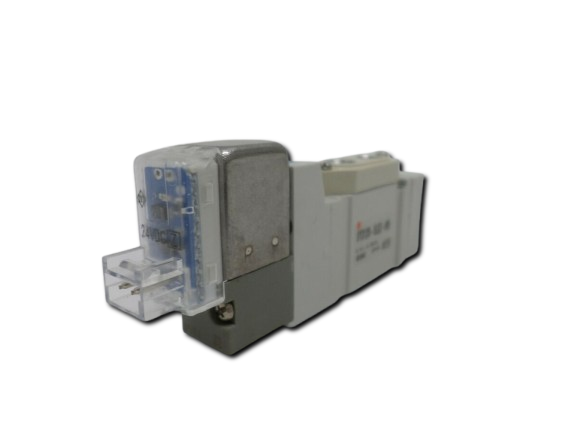

SMC SY31205LOZM5F1 (SY3120-5LOZ-M5-F1) - 5 Port Solenoid Valve, M5 x 0.8 Port, With Foot Bracket
SMC SY31205LOZM5F1 5 Port Solenoid Valve — L-type plug connector supplied without the connector, plus a foot bracket. 5 port, 2 position single solenoid, 24 VDC, body ported single unit, M5 x 0.8 A/B ports, L-type plug connector without connector, light/surge voltage suppressor, with foot bracket.
MPN: SY3120-5LOZ-M5-F1 · SKU: SY31205LOZM5F1
SY3120-5LOZ-M5-F1 Applications
The SMC SY31205LOZM5F1 ships with the L-type plug connector entry but without the connector itself, and adds a foot bracket, which is exactly what separates it from the pre-wired SY31205LZM5F1. It is used by panel builders who terminate their own connectors to a defined cable length. It is suited to machines with fixed cable routing, plants that standardise on one connector type, and installations where the valve is foot-mounted to a frame. Supplying the valve without the connector avoids paying for and then discarding a 300 mm flying lead.
SY3120-5LOZ-M5-F1 Specifications
| Brand | SMC | Manufacturer Part No. | SY3120-5LOZ-M5-F1 |
| Product Type | 5 Port Solenoid Valve, Body Ported, Single Unit | Series | 3 - SY3000 |
| Type Of Actuation | 1 - 2 Position Single | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Electrical Entry | LO - L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor | Manual Override | Push-turn Locking Type |
| A/B Port Size | M5 - M5 x 0.8 | Thread Type | Rc |
| Bracket | F1 - With Foot Bracket | Made To Order | Standard |
| CE-compliant | - |
Trusted by

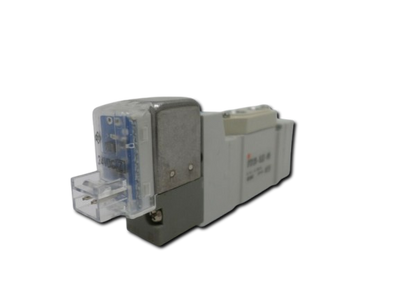

SMC SY31205LOZM5F1 (SY3120-5LOZ-M5-F1) - 5 Port Solenoid Valve, M5 x 0.8 Port, With Foot Bracket
