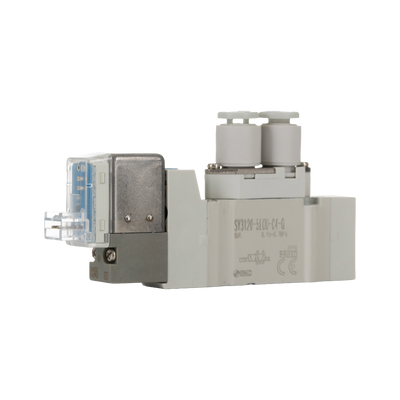

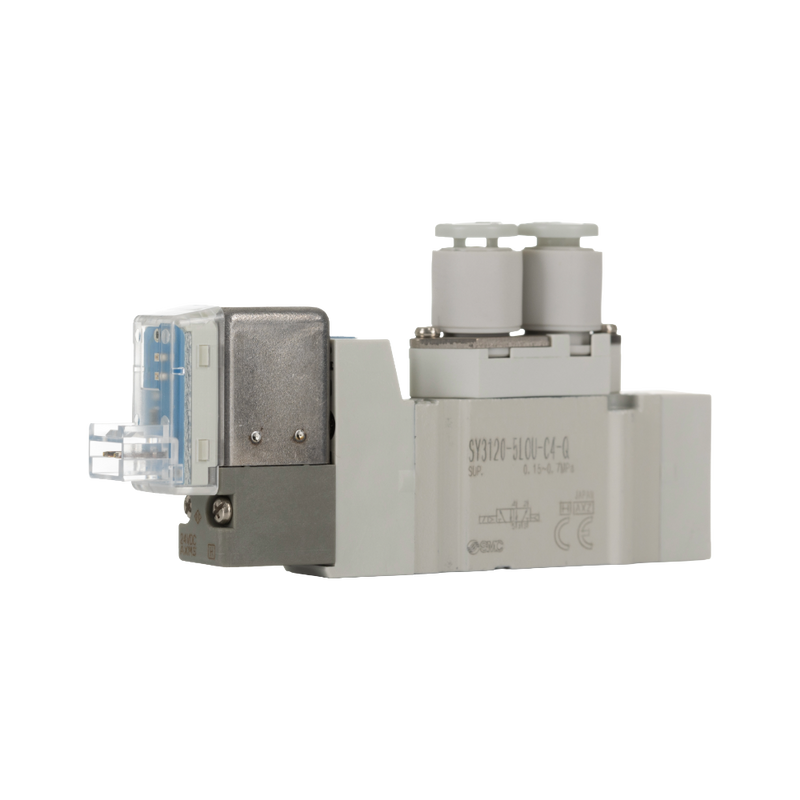

SMC SY31205LOZC4Q (SY3120-5LOZ-C4-Q) - 5 Port Solenoid Valve, One-touch Fitting for 4 mm Tube, CE-compliant
SMC SY31205LOZC4Q 5 Port Solenoid Valve — one-touch fittings for 4 mm tube instead of threaded ports, with a CE-compliant build. 5 port, 2 position single solenoid, 24 VDC, body ported single unit, one-touch fitting for 4 mm tube A/B ports, L-type plug connector without connector, light/surge voltage suppressor, CE-compliant.
MPN: SY3120-5LOZ-C4-Q · SKU: SY31205LOZC4Q
SY3120-5LOZ-C4-Q Applications
The SMC SY31205LOZC4Q is the only valve in this SY3120 group with one-touch fittings for 4 mm tube rather than threaded M5 ports, and it carries the CE mark. It is used where tubing must be pushed straight into the valve in compact electronics, medical device and small assembly machinery. It is suited to tight cabinets, rapid retooling, and machines built with 4 mm polyurethane tube throughout. Push-in ports remove fittings, sealant and assembly time from the build, and let a technician swap a tube run in seconds without tools.
SY3120-5LOZ-C4-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY3120-5LOZ-C4-Q |
| Product Type | 5 Port Solenoid Valve, Body Ported, Single Unit | Series | 3 - SY3000 |
| Type Of Actuation | 1 - 2 Position Single | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Electrical Entry | LO - L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | Z - With Light/Surge Voltage Suppressor | Manual Override | Push-turn Locking Type |
| A/B Port Size | C4 - One-touch Fitting For 4 mm Tube | Thread Type | Rc |
| Bracket | None | Made To Order | Standard |
| CE-compliant | Q - CE-compliant |
