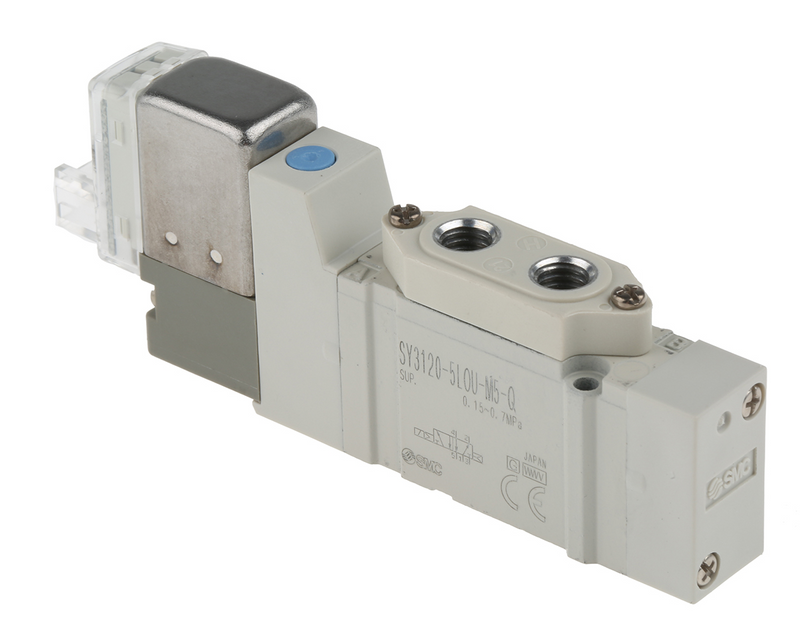

SMC SY31205LOUM5Q (SY3120-5LOU-M5-Q) - 5 Port Solenoid Valve, M5 x 0.8 Port, CE-compliant
SMC SY31205LOUM5Q 5 Port Solenoid Valve — non-polar light/surge suppressor with a CE-compliant build and M5 ports. 5 port, 2 position single solenoid, 24 VDC, body ported single unit, M5 x 0.8 A/B ports, L-type plug connector without connector, non-polar light/surge voltage suppressor, CE-compliant.
MPN: SY3120-5LOU-M5-Q · SKU: SY31205LOUM5Q
SY3120-5LOU-M5-Q Applications
The SMC SY31205LOUM5Q is the non-polar suppressor, CE-compliant member of the M5-ported SY3120 family, so its coil can be wired either polarity and the valve carries the CE mark. It is used as a standalone body ported valve in compact assembly, electronics and packaging machinery. It is suited to driving small double acting cylinders, air grippers and vacuum circuits close to the actuator. Non-polar wiring removes a common commissioning error on 24 VDC machines, and body porting means the valve needs no manifold or sub-plate to run.
SY3120-5LOU-M5-Q Specifications
| Brand | SMC | Manufacturer Part No. | SY3120-5LOU-M5-Q |
| Product Type | 5 Port Solenoid Valve, Body Ported, Single Unit | Series | 3 - SY3000 |
| Type Of Actuation | 1 - 2 Position Single | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Electrical Entry | LO - L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | U - With Light/Surge Voltage Suppressor (Non-polar Type) | Manual Override | Push-turn Locking Type |
| A/B Port Size | M5 - M5 x 0.8 | Thread Type | Rc |
| Bracket | None | Made To Order | Standard |
| CE-compliant | Q - CE-compliant |
