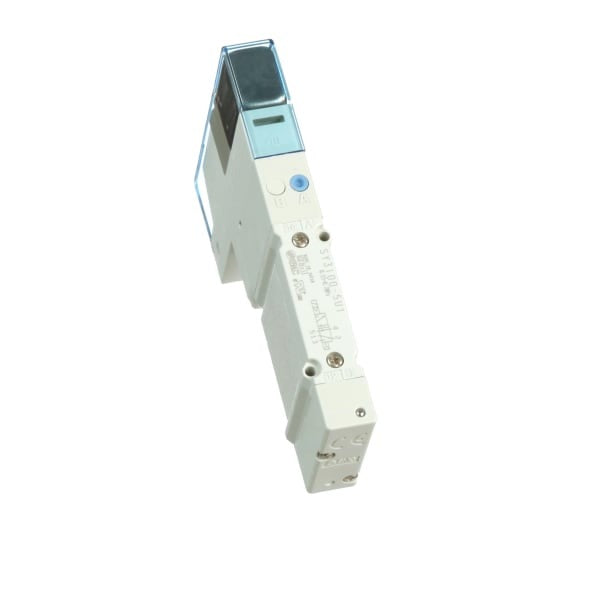

SMC SY31005U1 (SY3100-5U1) - 5 Port Solenoid Valve, 5/2 Single Solenoid, 24 VDC
SMC SY31005U1 5 Port Solenoid Valve — standard push-turn locking manual override on a plug-in base mounted SY3000 valve. 5 port, 2 position single solenoid, 24 VDC, plug-in type base mounted, rubber seal, internal pilot, non-polar light/surge voltage suppressor, push-turn locking manual override.
MPN: SY3100-5U1 · SKU: SY31005U1
SY3100-5U1 Applications
The SMC SY31005U1 carries the standard push-turn locking manual override, which is what separates it from the slotted UD1 and slide locking UF1 versions of the same plug-in valve. It is used on SS5Y3 manifolds in assembly machines, packaging lines and material handling cells. It is suited to driving double acting cylinders, air grippers and rotary actuators from a manifold-mounted station. Because it is a plug-in base mounted valve, wiring runs through the manifold rather than to each valve, which keeps station changes quick and cuts the cable count inside the machine.
SY3100-5U1 Specifications
| Brand | SMC | Manufacturer Part No. | SY3100-5U1 |
| Product Type | 5 Port Solenoid Valve, Plug-in Type, Base Mounted | Series | 3 - SY3000 |
| Type Of Actuation | 1 - 2 Position Single | Seal | 0 - Rubber Seal |
| Pilot Type | Internal Pilot | Back Pressure Check Valve | None |
| Pilot Valve Option | Standard (0.7 MPa) | Coil Specifications | Standard |
| Rated Voltage | 5 - 24 VDC | Light/Surge Voltage Suppressor And Common Specification | U - With Light/Surge Voltage Suppressor (Non-Polar) |
| Manual Override | Push-turn Locking Type | Type Of Mounting Screw | Round Head Combination Screw |
