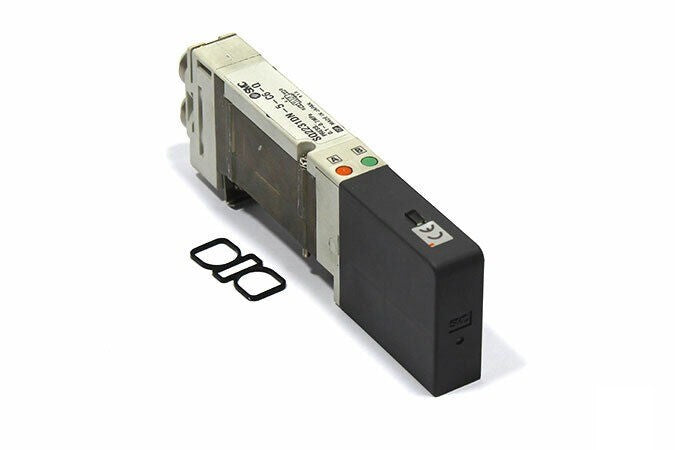

SMC SQ2231DN5C6Q (SQ2231DN-5-C6-Q) - Solenoid Valve, ø6 one-touch, 24 VDC double

SMC SQ2231DN5C6Q Solenoid Valve — Plug-in double solenoid 5-port valve, ø6 one-touch, 24 VDC. SMC SQ2000 series plug-in 5-port solenoid valve, 2-position double solenoid, negative common (N), 24 V DC, rubber seal, ø6 mm one-touch fitting (C6), operating pressure 0.1 to 0.7 MPa, with option (Q). Response time 20 ms or less, service life 200 million cycles.

MPN: SQ2231DN-5-C6-Q · SKU: SQ2231DN5C6Q

SQ2231DN-5-C6-Q Applications

The SQ2231DN-5-C6-Q is an SMC SQ2000 series plug-in 5-port double solenoid valve with negative-common 24 V DC coils and ø6 mm one-touch fittings. Designed for high-speed, high-frequency operation with response times of 20 ms or less and a 200 million cycle life, it suits fast pick-and-place, packaging and assembly automation, mounted on SS5Q23 plug-in manifolds.

SQ2231DN-5-C6-Q Specifications
