SMC SJ22605CUC4 (SJ2260-5CU-C4) - Solenoid Valve, 24 VDC double solenoid

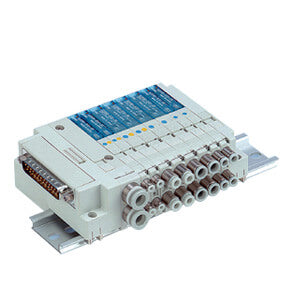

SMC SJ22605CUC4 Solenoid Valve — 4-port, 2-position double, 24 VDC, ø4 one-touch, body ported. SJ2260 4-port solenoid valve, SJ2000 series cassette type, body ported. 2-position double solenoid (memory/latching action). 5CU = 24 VDC, dedicated for centralized (plug-in) wiring. C4 = ø4 one-touch fitting for A/B ports. Valve width 7.5 mm. Flow characteristics C = 0.36 dm3/(s·bar), b = 0.13, Cv = 0.08. Applicable cylinder size ø20. Power consumption 0.55 W (standard) / 0.23 W (with power-saving circuit). RoHS compliant. Combinable with SJ3000 on the same manifold (up to 24 stations).

MPN: SJ2260-5CU-C4 · SKU: SJ22605CUC4

SJ2260-5CU-C4 Applications

The SJ2260-5CU-C4 is a 7.5 mm-wide double-solenoid 4-port valve that holds its last commanded position when both coils are de-energized, ideal for memory or fail-in-place actuation of cylinders, grippers and clamps on compact automation cells. The cassette body plugs into an SJ2000/SJ3000 centralized-wiring manifold to slash harness bulk, and ø4 one-touch ports speed tubing. At 24 VDC each coil draws just 0.55 W (0.23 W with the power-saving circuit). Double-solenoid latching suits sequences where a cylinder must stay put through momentary power interruptions.
