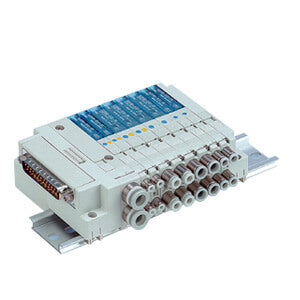

SMC SJ21605CUC4 (SJ2160-5CU-C4) - Solenoid Valve, 24 VDC single solenoid

SMC SJ21605CUC4 Solenoid Valve — 4-port, 2-position single, 24 VDC, ø4 one-touch, body ported. SJ2160 4-port solenoid valve, SJ2000 series cassette type, body ported. 2-position single solenoid. 5CU = 24 VDC, dedicated for centralized (plug-in) wiring. C4 = ø4 one-touch fitting for A/B ports. Valve width 7.5 mm. Flow characteristics C = 0.36 dm3/(s·bar), b = 0.13, Cv = 0.08. Applicable cylinder size ø20. Power consumption 0.55 W (standard) / 0.23 W (with power-saving circuit). RoHS compliant. Combinable with SJ3000 on the same manifold (up to 24 stations).

MPN: SJ2160-5CU-C4 · SKU: SJ21605CUC4

SJ2160-5CU-C4 Applications

The SJ2160-5CU-C4 is a low-profile 7.5 mm-wide single-solenoid 4-port valve used to actuate small pneumatic cylinders, grippers and vacuum ejectors on compact automation and pick-and-place cells. The cassette body clips into an SJ2000/SJ3000 plug-in manifold for centralized wiring, cutting harness bulk, while ø4 one-touch ports speed tubing. At 24 VDC it draws just 0.55 W (0.23 W with the power-saving circuit) for cool, energy-efficient operation. Single-solenoid action returns to the default position when de-energized, giving a defined home state on power loss.

SJ2160-5CU-C4 Specifications
