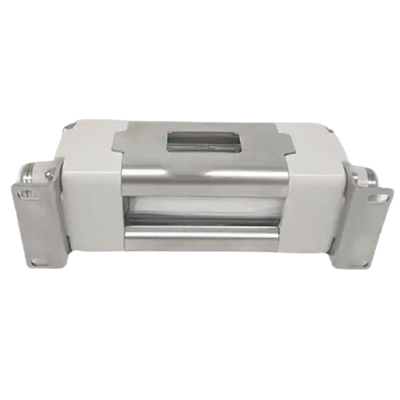

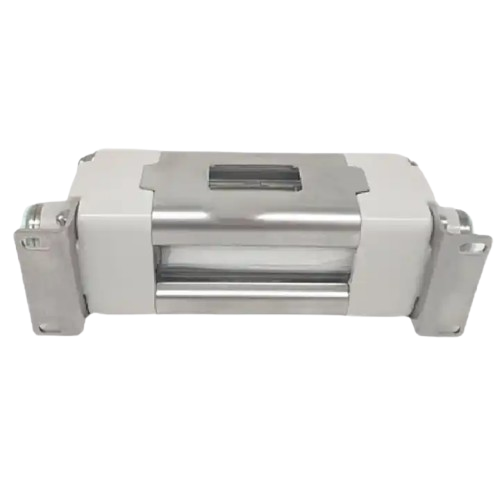

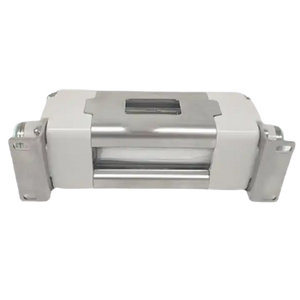

SMC SFD100C04 (SFD100-C04) - Clean Air Filter, 0.01 µm filtration

SMC SFD100C04 Clean Air Filter — Compact clean air filter, 0.01 µm, ø4 one-touch port. SFD100 compact clean air filter (SFD series) for removing dust and oil mist from compressed air. Nominal filtration rating 0.01 µm (99.99% collection efficiency). Maximum flow rate 100 l/min (ANR). Maximum operating pressure 1.0 MPa at 20°C. Built-in hollow-fibre element (non-replaceable — replace whole housing). C04 = ø4 one-touch fitting connection. Pressure drop approx. 0.03 MPa at 0.7 MPa inlet and max flow. Case material options resin/aluminium/stainless per series.

MPN: SFD100-C04 · SKU: SFD100C04

SFD100-C04 Applications

The SFD100-C04 is a compact final-stage filter that removes fine dust and oil mist down to 0.01 µm from compressed air, delivering the clean, dry supply needed by air bearings, precision instruments, analysers, air blow for optics and pneumatic sensors. Its ø4 one-touch ports fit directly into small-bore tubing near the point of use, and the 100 l/min rating suits low-flow branch lines. The hollow-fibre element is sealed for stable performance; replace the complete housing at end of life. Install downstream of a mist separator for longest service life.

SFD100-C04 Specifications
