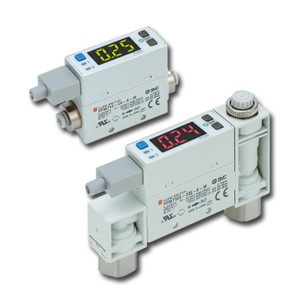

SMC PFM711S02B (PFM711S-02-B) - 2-Colour Display Digital Flow Switch, Rc1/4 Port, 2 to 100 L/min

SMC PFM711S02B 2-Colour Display Digital Flow Switch — Rc1/4 port with flow adjustment valve and PNP 2 outputs. 2-colour display digital flow switch with integrated display for air, N2, Ar and CO2, 2 to 100 (50) L/min rated flow range, with flow adjustment valve, Rc1/4 bore size, straight piping entry, PNP 2 outputs, with lead wire with connector (2 m).

MPN: PFM711S-02-B · SKU: PFM711S02B

PFM711S-02-B Applications

The SMC PFM711S02B is used on Rc-plumbed pneumatic machinery that needs both flow setting and PNP switching from a single compact device. The integrated flow adjustment valve lets the air rate be trimmed at the switch, so it is suited for setting blow-off and cooling nozzles, proving air flow to tooling before a cycle starts, and monitoring branch circuits for leaks. Its 2 to 100 L/min range covers typical machine air consumption, the 2-colour display shows the reading against the set point, and the grease-free body suits clean and dry air.

PFM711S-02-B Specifications
