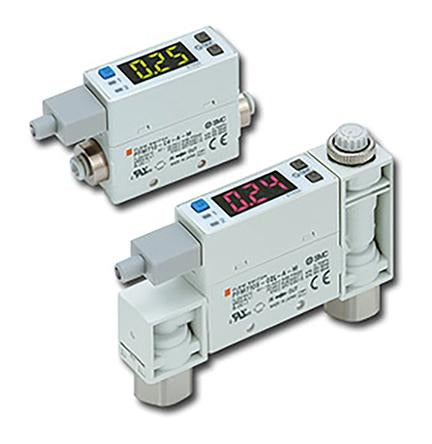

SMC PFM711N02LAA (PFM711-N02L-A-A) - 2-Colour Display Digital Flow Switch, NPT1/4 Port, 2 to 100 L/min

SMC PFM711N02LAA 2-Colour Display Digital Flow Switch — NPT1/4 port with bottom piping entry, no flow adjustment valve, NPN outputs and a calibration certificate. 2-colour display digital flow switch with integrated display for air, N2, Ar and CO2, 2 to 100 (50) L/min rated flow range, without flow adjustment valve, NPT1/4 bore size, bottom piping entry, NPN 2 outputs, with calibration certificate, with lead wire with connector (2 m).

MPN: PFM711-N02L-A-A · SKU: PFM711N02LAA

PFM711-N02L-A-A Applications

The SMC PFM711N02LAA is used on NPT-plumbed machinery where the flow switch must mount against a panel and feed NPN inputs. Its bottom piping entry keeps the fittings behind the device, so it is suited for compact manifold blocks, panel-mounted air metering stations, and retrofits into equipment built to imperial thread standards. The 2 to 100 L/min range covers typical tool and blow-off circuits, and the supplied calibration certificate documents the as-shipped accuracy for quality-managed and validated installations where traceable measurement is required.

PFM711-N02L-A-A Specifications
